Kramer VP3XL 1:3 Computer Video Distribution Amplifier
Kramer Electronics

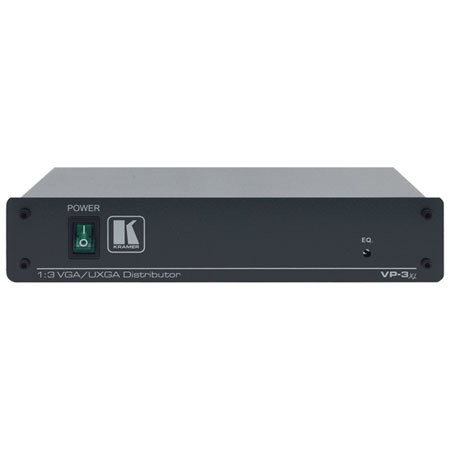

Kramer VP-3XL 1:3 Computer Graphics Video Distribution Amplifier

SKU: VDKRVP3XL MFR: VP3XL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VP-3XL 1:3 Computer Graphics Video Distribution Amplifier
  • Power Cable
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$280.00 Special Price Available
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VP-3XL is a high-performance distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It takes one input, provide correct buffering and isolation and distribute the signal to three, four, or five identical outputs.

What's Included With This Item

  • Kramer VP-3XL 1:3 Computer Graphics Video Distribution Amplifier
  • Power Cable
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 375MHz (-3dB)
  • HDTV Compatible
  • EQ (Peaking) Control
  • ID Bit Control
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Technical Specs

Input 1 VGA/UXGA input on a 15-pin HD (F) connector
Output 3 (VP-3xl), 4 (VP-4xl), 5 (VP-5xl) VGA/UXGA on 15-pin HD (F) connectors
Max. Output Level 1.9Vpp
Bandwidth (-3dB) 375MHz
Diff. Gain 0.12%
Diff. Phase 0.28Deg
K-factor <0.05%
S/N Ratio 73.7dB
Controls EQ: 0 to 6.6dB @50MHz
Coupling DC
Power Source 100-240V AC, 50/60Hz, 4.3VA
Dimensions 22cm x 18cm x 4.5cm (8.7" x 7" x 1.7") W x D x H (half 19", 1U)
Weight 1.2kg (2.64lbs)
Warranty Kramer 7 years limited warranty
