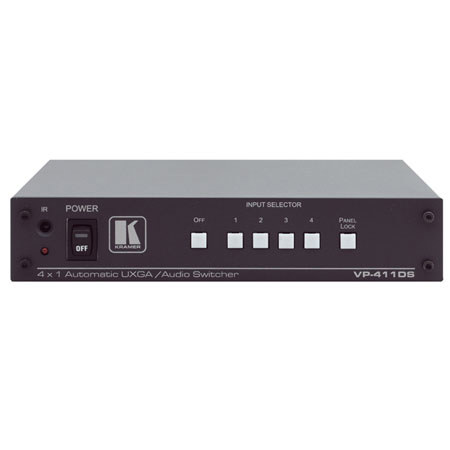

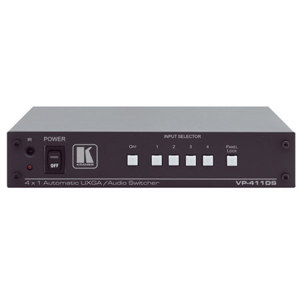

Kramer VP411DS 4x1 Video/Audio Standby Switcher
Kramer Electronics

Kramer VP-411DS 4x1 Computer Graphics Video & Stereo Audio Standby Switcher

SKU: VDKRVP411DS MFR: VP411DS
What's Included
What's Included With This Item:
  • Kramer VP-411DS 4x1 Video & Stereo Audio Standby Switcher
  • Power Supply
  • IR Remote Control
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$556.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VP-411DS

The Kramer VP-411DS is a high-performance switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher and unbalanced stereo audio signals. When configured as a standby switcher, the switching priority can be set for each of the 4 inputs.

Kramer Electronics VP-411DS Includes

  • Kramer VP-411DS 4x1 Video & Stereo Audio Standby Switcher
  • Power Supply
  • IR Remote Control
  • Kramer 7 Years Limited Warranty

Kramer Electronics VP-411DS Features

  • High Bandwidth - 300MHz (-3dB)
  • HDTV Compatible
  • Looping Input - Input 1
  • Automatic Standby Switching - Priority can be set for each of the 4 inputs via dip switches
  • Primary Input - Selectable
  • KR-ISP Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. KR-ISP advanced sync processing can be enabled or disabled
  • Flexible Control Options - Front panel, RS-232 (K-Router Windows-based Kramer software is included), contact closure & IR remote (included)
  • Output Disconnect
  • Front Panel Lockout
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 rack adapter

Kramer Electronics VP-411DS Specifications

Input 4 UXGA on 15-pin HD connectors; 4 unbalanced stereo audio on 3.5mm mini audio connectors
Output 1 UXGA on a 15-pin HD connector; 1 UXGA on a 15-pin HD connector (IN 1 LOOP); 1 unbalanced stereo audio on a 3.5mm mini audio connector; 1 unbalanced stereo audio on a 3.5mm mini audio connector (IN 1 LOOP)
Max. Output Level Video: 1.8Vpp; Audio: 7.2Vpp
Bandwidth (-3dB) Video: 300MHz; Audio: >40kHz
Diff. Gain 0.03%
Diff. Phase 0.06Deg
K-factor <0.05%
S/N Ratio Video: 73dB @5MHz; Audio: 93dB
Crosstalk (all Hostile) Video: -50dB @5MHz; Audio: -72dB @1kHz
Controls Input selector; PANEL LOCK and OFF pushbuttons; IR remote control reception window; connector for extended IR reception; RS-232 connector; contact closure terminal block for external wire switching; inputs priority selector dipswitches; normal/KR-ISP and program/normal mode selectors via slide switches on the underside
Coupling Video: DC; Audio: DC
Audio THD + Noise 0.004% @1kHz
Audio 2nd Harmonic 0.002% @1kHz
Power Source 12V, 230mA
Dimensions 21.5cm x 16.25cm x 4.36cm (8.46" x 6.4" x 1.7") W x D x H
Weight 1.1kg (2.43lb) approx
Warranty Kramer 7 years limited warranty
