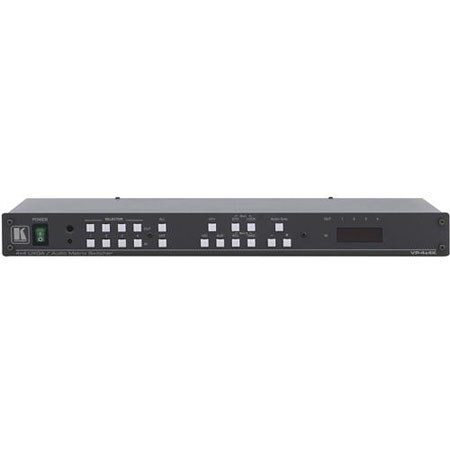

Kramer Electronics VP-4x4K 4x4 Computer Graphics Video and Balanced Stereo Audio Matrix Switcher

Kramer Electronics VP-4x4K Features

• This unit offers a bandwidth of 400MHz (-3dB)
• It is HDTV-compatible
• Kramer's proprietary KR-ISP Advanced Sync Processing is designed to ensure compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform
• Delayed switching is available up to a 3.5s (user-selectable) delay for clean transitions (seamless switching) when switching between non-genlocked sources
• Audio breakaway switching is a standard feature
• Memory locations store multiple switches as presets to be recalled and executed as needed
• ALL/OFF controls send one input to all outputs, can disconnect all outputs, or turn off individual outputs
• A take button executes multiple switches at the same time
• A front-panel control lockout feature prevents unwanted tampering
• Active input indicational reporting causes each input button on the front panel to automatically light up when the unit detects a video signal on that input, or when an input is selected for switching, the button changes to a different color to indicate it is the active input
• Audio level controls are available for input and output
• Control options include: front panel, RS-485, RS-232 (K-Router Windows-based software), Ethernet and IR remote (included)
• A worldwide power supply ensures compatibility virtually anywhere
• This unit can be mounted in 1U of rack space using the included rack ears
