Kramer VP6A 1:6 XGA Video/Audio Distribution Ampli

Kramer Electronics Kramer VP-6A 1:6 XGA Computer Graphics Video & Audio Distribution Amplifier with Twisted Pair Transmitter

SKU: VDKRVP6A
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics VP-6A Specifications

Related Articles & Videos

About Kramer Electronics VP-6A

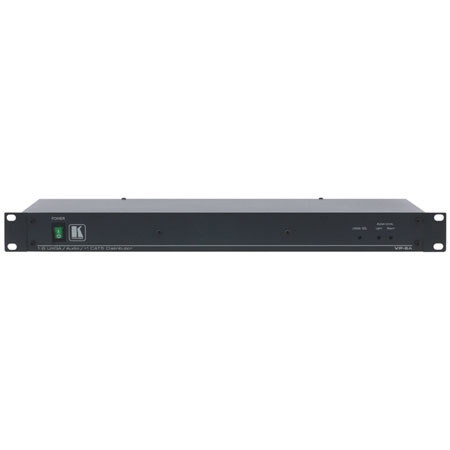

The Kramer VP-6A is a high-performance computer graphics video distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher with balanced or unbalanced stereo audio signals. It takes one input, provides correct buffering and isolation and distributes the signal to 6 computer graphics video outputs on 15-pin HD connectors and one AV twisted pair output on an RJ-45 connector.

Kramer Electronics VP-6A Features

  • HDTV Compatible
  • High Bandwidth (15-pin HD) - 500MHz (-3dB)
  • Max Resolution (Twisted Pair Output) - WUXGA & 1080p
  • Built-In Audio Trancoding - Balanced or unbalanced stereo input with 12 live outputs (6 balanced and 6 unbalanced)
  • Audio Level Controls - Left & right
  • Power Connect System - Only the VP-6A needs to be connected to a power source when the devices are within 50m (150ft) of each other
  • ID Bit Control
  • EQ (Peaking) Control
  • Horizontal and Vertical Polarity Selection
  • System Range - Up to 100m (300ft). Greater distances possible depending on signal resolution and cable
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5
  • Standard 19" Rack Mount Size - 1U

What's in the box:

  • Kramer VP-6A 1:6 XGA PC Graphics A/V Dist Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty
