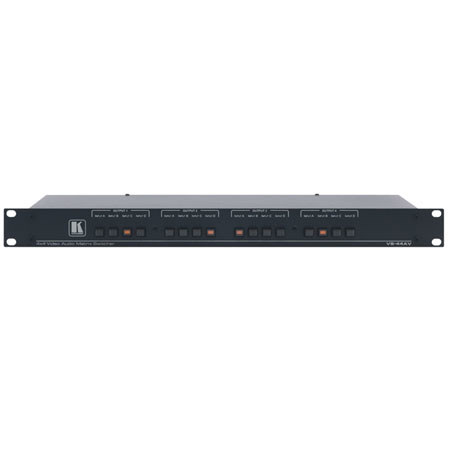

Kramer VS-44AV 4x4 Composite Video & Stereo Audio Mechanical Switcher
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Ways to Save
The Kramer VS-44AV is a high-performance switcher (4 crosspoints) for composite video and unbalanced stereo audio signals. It can route up to four inputs to four different outputs, but it can not distribute any one signal to multiple outputs.
|Input||4 video, 1Vpp/75 Ohm on BNC connectors; 4 audio stereo, up to 36Vpp (typ.) on RCA connectors|
|Output||4 composite video, 1Vpp/75 Ohm on BNC connectors. 4 stereo audio, up to 36Vpp (typ.) on RCA connectors|
|Switching System||Mechanical, break-before-make|
|Bandwidth (-3dB)||Video: 220MHz; Audio: 100kHz|
|Crosspoints||16 for video, 16x2 for audio, 4 active at any given time|
|Video Crosstalk||-46dB @5MHz|
|Dimensions||19" x 7" x 1U (W x D x H), rack mountable|
|Weight||1.6kg (3.5lbs) approx|
|Warranty||Kramer 7 years limited warranty|
