Kramer VS602XL 6x2 Video/Audio Stereo Matrix Switc

Kramer Electronics Kramer VS-602XL 6x2 Composite Video & Balanced Stereo Audio Matrix Switcher

SKU: VDKRVS602XL
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics VS-602XL Specifications

Related Articles & Videos

About Kramer Electronics VS-602XL

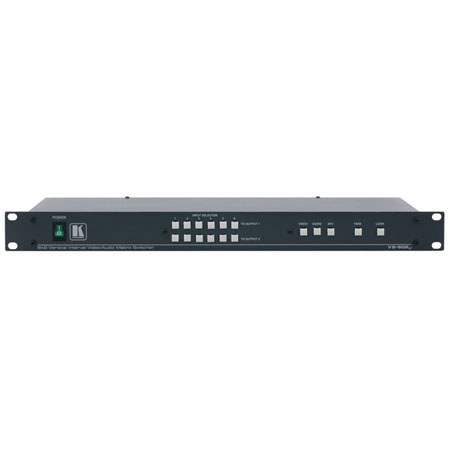

The Kramer VS-602XL is a high-performance matrix switcher for composite video and balanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Kramer Electronics VS-602XL Features

  • High Bandwidth - 300MHz (-3dB) fully loaded
  • Level (Gain) and EQ (Peaking) Controls - Each output
  • Looping Input
  • Selectable Input Signal Termination
  • Video Outputs - 1:2 DAs
  • Control - Front panel, contact closure, RS-232 (K-Router Windows-based software is included)
  • Front Panel Control Lockout
  • Take Button - Execute multiple switches all at once
  • Memory Locations - Store multiple switches as presets (salvos) for recall and execution as needed
  • Audio Breakaway Switching
  • Vertical Interval Switching
  • Switching Synchronization - Synchronize either to external reference or the incoming video
  • Selectable Sync Signal Termination
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

What's in the box:

  • Kramer VS-602XL 6x2 Composite Video & Balanced Stereo Audio Matrix Switcher
  • Power Cord
  • PC Control Software
  • Kramer 7 Years Limited Warranty
