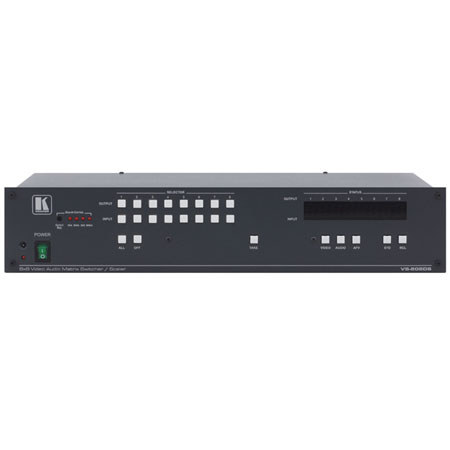

Kramer Electronics Kramer VS-808DS 8x8 Composite Video Matrix Switcher with Stereo Audio and Scaled Output
SKU: VDKRVS808DS
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics VS-808DS
The Kramer VS-808DS is a high-performance matrix switcher for composite video and unbalanced stereo audio signals. It simultaneously routes any or all inputs to any or all outputs plus one scaled computer graphics output.
Kramer Electronics VS-808DS Features
- High Bandwidth - 200MHz (-3dB)
- Switching Synchronization - Synchronize either to external reference or the incoming video
- Scaled Output Resolutions - VGA (640x480), SVGA (800x600), XGA (1024x768), WXGA (1366x768)
- Scaled Output - Same as composite video output 8
- Front Panel Lockout
- Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed
- Take Button - Execute multiple switches all at once
- Audio Breakaway Switching
- Vertical Interval Switching
- Flexible Control Options - Front panel, RS-232 (K-Router Windows-based software is included), RS-485 & IR remote (included) & remote IR receiver (optional)
- Worldwide Power Supply - 100-240V AC
- Standard 19" Rack Mount Size - 2U. Rack "ears" included
