About Kramer Electronics VS-88HC

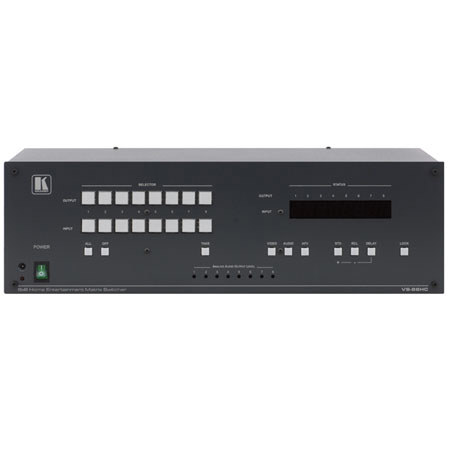

The Kramer VS-88HC is a high-performance matrix switcher for component video, unbalanced stereo and S/PDIF audio signals. Designed primarily for home entertainment applications, the unit can route any or all inputs to any or all outputs simultaneously.
Kramer Electronics VS-88HC Features
- High Bandwidth - 90MHz (-3dB)
- HDTV Compatible
- Toslink Audio Capability - Audio input 2 can accept either S/PDIF or TOSLINK audio (selected via dip-switches). If selected, both S/PDIF and Toslink audio are simultaneously available on audio output 2
- Sampling Rates - Up to 192kHz
- Programmable Audio Delay - Up to 999ms (depending on sample rate)
- Audio Breakaway Switching
- Analog Volume Control - Each input & output via recessed trim adjustments
- Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed as needed
- Take Button - Execute multiple switches all at once
- Flexible Control Options - RS-485, RS-232 (K-Router Windows-based Kramer software is included), Ethernet, IR remote (included)
- Front Panel Lockout
- Worldwide Power Supply - 100-240V AC
- Standard 19" Rack Mount Size - 3U. Rack "ears" included
