Marshall 10.4" High Definition 2.4 Mega Pixel Stand Alone HD/SD LCD Monitor with Advanced Features

SKU: VDMA104HDSDM

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Marshall VR1041DPAFHD 10.4in 2.4MP HD/SD LCD Monit Specifications

  • Number of Screens

    1 with Antiglare surface treatment

  • Display (Viewing Area)

    10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H)

  • Resolution (RGB Dots)

    1024HxRGBx768V (2.4 million RGB pixels) (16.7 Million colors)

  • Viewing Angles

    170° H x 170° V

  • Dot Pitch

    0.0685 (H) x 0.2055 (V) mm

  • Contrast Ratio

    700:1

  • Pixel Response

    < 25ms

  • Brightness

    300 cd/mÂ

  • Digital Processing

    100%

  • System

    NTSC/PAL auto recognition for standard definition signals

  • Standard inputs

    HDSDI (all formats)
    SDI (ITU-R BT601 format)
    Composite Video PAL/NTSC
    Y/C (S-Video)
    Component Video YPrPb
    VGA to SXGA computer display
    DVI-I

About Marshall VR1041DPAFHD 10.4in 2.4MP HD/SD LCD Monit

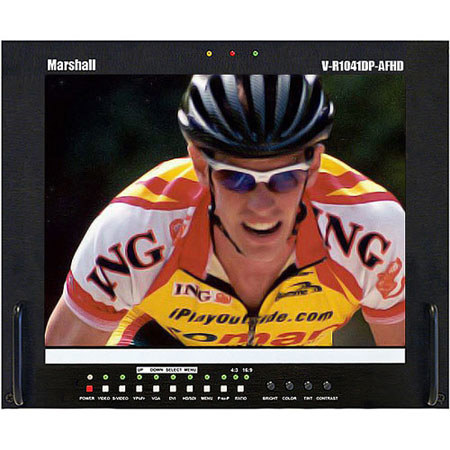

The Marshall V-R1041DP-AFHD features Completely Digital TFT-MegapixelT high definition LCD screen with 2.4 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection. Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion.

Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolation with precision Gamma correction to product the best images available. Additional features include, Pixel-to-PixelT native resolution scaling, setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions

What's in the box:

  • Marshall 10.4" High Definition Stand Alone HD/SD Monitor
  • 1/4-20 Mounting Plate
  • "V" Mount Battery Adapter
  • Universal Voltage Class-2 Power Supply
