Marshall

Our Price

$244.95

Quantity:

Need Help? Call Our Experts!

1-800-223-2500

Hours of operation

Item Includes Description Features Specifications

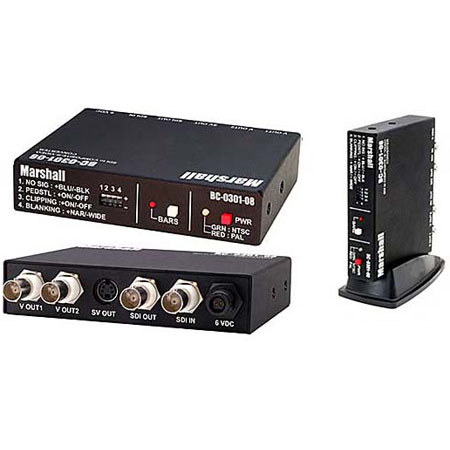

Marshall SDI to Composite Video and S-Video D/A Converter

Mfr. Part: BC030108     SKU: VDMABC030108

Marshall SDI to Composite Video and S-Video D/A Converter
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
AC Power Adapter - Marshall One Year Warranty

Description
· Marshall's Low-cost BC-0301-08 digital to analog module can be configured for use in desktop or studio rack mount applications. The unit features 2 simultaneous Composite Video and S-Video D to A (10 bit processing) conversion.

The unit also includes a built in Color Bar zGenerator, System indicator (PAL/NTSC), and dip-switch settings for no signal (Black/Blue screen displayed),pedestal (On/Off), clipping (On/Off), and blanking (Narrow/Wide).

All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

Features
Converts component serial digital signal to analog composite
Active loop through for SDI signal
Simultaneous outputs for 2 video and 1 Y/C (S-Video)
PAL/NTSC auto detection with led indicator
Pedestal on/off selection for NTSC signals
10-bit processing with two-times over sampling
Supports closed captioning
Includes color bar generator

Specifications
Serial Digital InputSDI (SMPTE-259M-C, ITU-R601)
Input Data Rate270 Mb/s
Serial Digital OutputBNC active loop through 0.8V p-p 75W
Input Return Loss<15db
Cable Length1000' max using Belden 8281 or equivalent
Analog OutputSimultaneous 2 Composite Video and 1Y/C outputs
Sample Frequency27Mhz
Power required6V D.C. supplied from external power supply (Included)
Weight0.55 lbs
Dimensions4.75"W x 3.75"D x 1.0"H


Marshall V-CB1 Base Stand for Desktop Vertical Setup of Conversion or Distribution Modules $19.95
VDMAVCB1
Buy
Marshall V-CB1 Base Stand for Desktop Vertical Setup of Conversion or Distribution Modules
Marshall V-CRM3 Rack Mount Holder for Distribution Amplifiers & Video Converters. $74.50
VDMAVCRM3
Buy
Marshall V-CRM3 Rack Mount Holder for Distribution Amplifiers & Video Converters.
