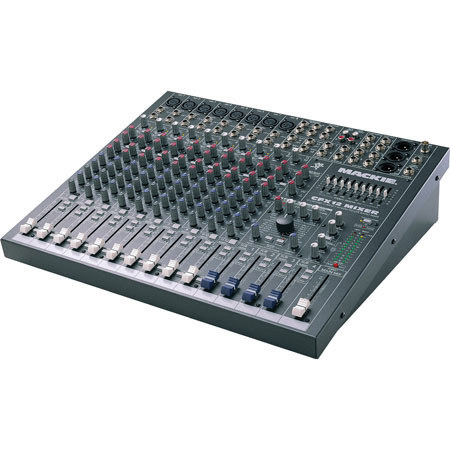

Features
 |
High-headroom mic preamps with RF rejection |
|
12 channels (8 mic/line mono, and 2 stereo line channels) |
|
32-bit EMAC digital effects with 9 reverbs, 4 delays, phaser, chorus, flange; 2 parameter controls + EFX wide spatial expander |
|
External and internal EFX sends |
|
EFX to Monitor control |
|
9-band stereo graphic equalizer |
|
Inserts on all mic channels and main mix |
|
True 4-bus design with direct sub outs and L/R assign |
|
2 Pre/Post Aux sends and internal/external FX level sends on each channel |
|
3-band EQ with swept mid (100Hz to 8kHZ) on mic/line channels |
|
4-band EQ on stereo line channels |
|
Pan, Mute, PFL solo on each channel |
|
Inserts and 100Hz low-cut filters on all mic/line channels |
|
Subwoofer output from built-in 18dB/oct. 75Hz crossover |
|
Ingenious BREAK switch |
|
Headphone output with level control |
|
Tape/CD inputs with level control assignable to Main Mix via Break switch |
|
Logarithmic taper 60mm faders |
|
48V phantom power |
|
12V BNC lamp jack |
Specifications
| VU Meters | Main L/R 12 segments Clip, +10, +7, +4, +2, 0, -2, -4, -7, -10, -20,-30 |
| Digital Effects | Resolution 32-bit EMAC processing, 2-channel
Number of Presets 16
Parameters 2 controllable |
| Channel Level Set LED (Sensitivity) | 0 dBu (normal operating level) |
| Input Level Trim Control Range | +6 to -50dB |
| Crosstalk | Adjacent Inputs or Input to Output -90 dB at 1kHz
Fader Off -90 dB at 1kHz
Mute Switch and Break Switch Mute -80 dB at 1kHz |
| CMRR | at 1kHz, Trim at 0 dB 60 Db |
| Noise | 20Hz to 20kHz BW (150 Ohms source impedance) Equivalent Input Noise (EIN) -127 dBu Residual Output Noise Main, Monitor, & Effects outputs Channel & Master levels off -95 dBu |
| Distortion | THD and SMPTE IMD; 20Hz to 20kHz Mic Input to Main Output < 0.05% at +4 dBu output |
| Frequency Response | Mic Input to any Output Trim at 0 dB 32Hz to 20kHz +0, -1 dB, |
| Max Voltage Gain | Mic input to Insert Output 50 dB
Tape Output 66 dB
Sub Output 66 dB
Main Output 76 dB
Aux Send 71 dB
Line Input to Insert Output 30 dB
Tape Output 46 dB
Sub Output 46 dB
Main Output 56 dB
Aux Send 51 dB
Stereo Line Input to Tape Output 40 dB
Sub Output 40 dB
Main Output 50 dB
Aux Send 45 dB
Tape Input to Main Output 30 dB
Effects Return to Main Output 30 dB |
| Equalization | Low Cut 100Hz, -18dB/octave
Mono Channel EQ High ±15dB at 12kHz Mid ±15 dB at 100Hz to 8kHz Low ±15 dB at 80Hz
Stereo Channel EQ High ±15 dB at 12kHz High Mid ±15 dB at 3kHz Low Mid ±15 dB at 400Hz Low ±15 dB at 80Hz
Graphic EQ (9 bands): ±15 dB Q =1.414 ISO octave centers at 63Hz, 125Hz, 250Hz, 500Hz, 1k, 2k, 4k, 8k, 16kHz |
| Mixer Rated Output | Main, Sub, Aux, & Efx: +4 dBu Maximum Rated Output: +20 dBu |
| Maximum Input Levels | Mic input Trim at +6 dB +18 dBu
Line Input Trim at -15 dB +38 dBu
Insert Return, Stereo Line Input, Tape Input, and Effects Return +20 dBu |
| Power requirements | Phantom Power +48V DC |
| Input Impedance | Mic Input 3 kilohms, balanced
Line Input 40 kilohms, balanced
Insert Return, Stereo Line Input, Tape Input, and Effects Returns 10 kilohms, unbalanced |
| Output Impedance | Main Output, Insert Output, Tape Output, Sub Output, and Effects Sends 150 Ohms |
| Dimensions | na |
| Weight | 17.8 lbs (8.1kg) |
| | |
|
