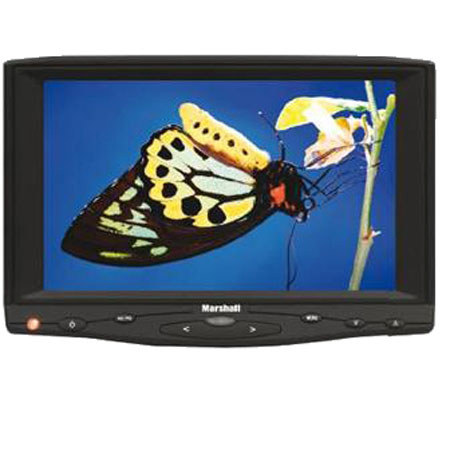

Marshall M-LCD7-HDMI-BNEL3 7in Portable On-Camera Field Monitor with Nikon EN-EL3e Battery

SKU: VDMALCD7HNB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Can join on camer hotboot?

Reviews about this item

Review Summary

2011-04-12T21:00:00

Rated 4 out of 5

very good for DSLR & camcorders

it takes the place of all the other viewfinder.

DOUGLAS K.

Marshall MLCD7HDMIBNEL3 7in On-Camera Field Monito Specifications

  • Application

    DSLR & Video Production

  • LCD Size

    7"

  • Video System

    NTSC/PAL

  • Resolution

    800 x 480

  • Brightness

    300cd/m2

  • Contrast Ratio

    500:1

  • Viewing Angle

    70 deg./70 deg. (L/R), 50 deg./60 deg. (U/D)

  • Speaker

    > 250mW/8 ohms

  • Input and Output Connectors

    HDMI (x1 Input)
    Composite: RCA (x2 Input)
    VGA: 15-pin D-Sub (x1)
    Audio: RCA (x1 Input)

  • Remote Control

    Yes

  • Operating Temperature

    -4 to 131 deg.F (-20 to 55 deg.C)

  • Power Requirements

    12VDC +/-10%

  • Power Consumption

    6W (max)

  • Dimensions (W x H x D)

    7.4 x 5.1 x 1.6in / 18.8 x 13 x 4.1cm

  • Weight

    12oz / 340g

  • UPC Code

    801813145977

About Marshall MLCD7HDMIBNEL3 7in On-Camera Field Monito

The Marshall M-LCD7-HDMI-BNEL3 7" Portable On-Camera Field Monitor with Nikon EN-EL3e Battery is an affordable, completely portable answer to the need for accurate focusing when shooting video with DSLR cameras or camcorders with small LCD screens. The M-LCD7-HDMI-BNEL3 not only gives you a large, bright 800 x 480 display to focus on, it provides inputs for both HD and standard-def video as well as the flexibility of being able to use your camera's existing batteries for power.

Both NTSC and PAL compatible, the monitor includes Image Flip, Aspect Ratio Detect and the ability to adjust color temperature via a PC connection. Just as noteworthy are the numerous add-ons, from a variety of input cables to a table stand, hot shoe adapter (for on-camera mounting) and remote control.

Along with the Nikon EN-EL3e battery, this kit includes battery and mounting plates and a DC cable and charger. The standard AC power supply and cigarette lighter adapter give you a choice of plug-in power options.

What's in the box:

  • Marshall M-LCD7-HDMI-BNEL3 7in Portable On-Camera Field Monitor
  • Nikon EN-EL3e Battery
  • Battery Mount
  • Mounting Plate
  • DC Power Cable
  • Battery Charger
  • Mini-HDMI to HDMI Cable
  • HDMI Cable
  • A/V Cable
  • PC Cable (9-pin VGA)
  • Cigarette Lighter Adapter
  • AC Power Supply
  • Table Stand
  • Hot Shoe Adapter
  • Remote Control
  • Operating Instructions
  • Marshall Warranty
