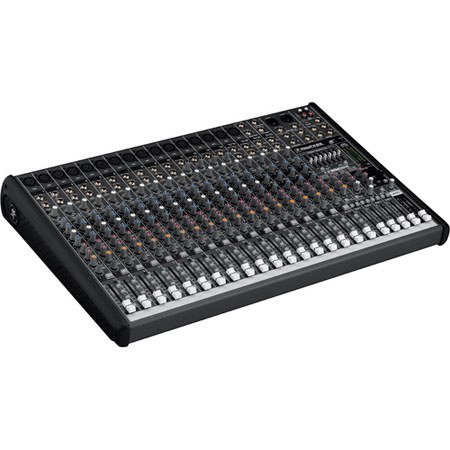

Mackie ProFX22 22-Channel Professional Effects Mixer with USB
SKU: VDMAPROFX22
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Mackie ProFX22
The Mackie ProFX22 22-Channel Desktop Sound Reinforcement Mixer with USB is a effective solution for mid/large-sized venues without the space or budget for lots of gear. There are 16 low-noise Mackie mic preamps that offer a +50dB gain range. There is also dedicated inline compression for the critical inputs on channels 11-14. A built-in 32-bit RMFX processor offers 16 different "Gig-Ready" reverbs, choruses and delays to add depth to your sound. The precision 7-band EQ allows you to tune your mains and monitors, while 3-band EQ with sweepable midrange is provided on the mono channels. There are 14 mono and 4 stereo line inputs, plus individual channel mute switches and overload indicators.
Each of the mic inputs has an 18dB/octave 100Hz low cut filter and there are inserts on the mono mic/line channels (1-10) for connecting outboard processors. The mixer has 60mm faders for the input channels, subgroups and mains for precise control. The mic inputs offer 48V phantom power and LED indicators for use with condenser microphones. There is an FX mute button, which is also controllable via the footswitch input. A break switch will mute all of the channels, ideal for music playback between sets.
A USB interface makes it easy to record shows or play music via a Mac or PC. You can also stream subgroups 1-2 or the main L/R channels to your computer for recording. There is a stereo USB/tape I/O with input level control to the mains, as well as a convenient USB return to the stereo channel for implementation of auxes, EQ and more. Tracktion 3 Music Production software is included for recording and editing your work. The software works on Mac and PC platforms.
The mixer offers balanced XLR and balanced/unbalanced 1/4" main outputs, as well as control room and headphone outputs with rotary level controls. The rugged steel chassis provides lasting durability for a lifetime of professional use. Optional rack ears (sold separately) allow you to mount the mixer in a standard equipment rack. The mixer also features a switching multi-voltage power supply for convenient international use.
Mackie ProFX22 Features
- Low-Noise Preamps: There are 16 low-noise Mackie mic preamps that offer a +50dB gain range
- Compression: Dedicated inline compression is provided for the critical inputs on channels 11-14. This gives you dynamic control with a single twist of a knob, ideal for live applications or recording
- Gig-Ready Effects: A built-in 32-bit RMFX processor offers 16 different "Gig-Ready" reverbs, choruses and delays to add depth to your sound. Rather than digging through hundreds of effects, you have a handful of top-quality choices that provide utility and usability
- EQ: The precision 7-band EQ allows you to tune your mains and monitors, while 3-band EQ with sweepable midrange is provided on the mono channels
- Mono and Stereo: There are 14 mono and 4 stereo line inputs, plus individual channel mute switches and overload indicators
- Low Cut Filters and Inserts: Each of the mic inputs has an 18dB/octave 100Hz low cut filter and there are inserts on the mono mic/line channels (1-10) for connecting outboard processors
- 60mm Faders: The mixer has 60mm faders for the input channels, subgroups and mains for precise control
- Phantom Power: The mic inputs offer 48V phantom power and LED indicators for use with condenser microphones
- FX and Break Muting: There is an FX mute button, which is also controllable via the footswitch input. A break switch will mute all of the channels, ideal for music playback between sets
- USB Interface: A USB interface makes it easy to record shows or play music via a Mac or PC. You can also stream subgroups 1-2 or the main L/R channels. There is a stereo USB/tape I/O with input level control to the mains, USB return to the stereo channel for implementation of auxes, EQ and more
- Tracktion 3 Software: Tracktion 3 Music Production software is included for recording and editing your work. The software works on Mac and PC platforms
- XLR and 1/4" Main Outputs: The mixer offers balanced XLR and balanced/unbalanced 1/4" main outputs, as well as control room and headphone outputs with rotary level controls
- Rugged Construction: The mixer has Mackie's "Built-Like-A-Tank" construction, featuring a steel chassis and impact-resistant ABS sidecheeks for lasting durability. Optional rack ears (sold separately) allow you to mount the mixer in a standard equipment rack
- International Operation: The mixer features a switching multi-voltage power supply for convenient international use
