Marshall VR70PHDA 7in HD/SD 1.2 TFT-MegaPixelt Mon
See all Marshall items

Marshall 7" HD/SD 1.2 TFT-MegapixelT Stand alone / Video Assist Monitor with Analog Inputs.

SKU: VDMAVR70PHDA

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2011-10-10T21:00:00

Rated 2 out of 5

Deceiving title as HD is not the focus.

HD cables hard to figure out. This is not made for HDMI, and most cameras - it is made for older SD models... but then why would u buy an HD one?

TP

Marshall VR70PHDA 7in HD/SD 1.2 TFT-MegaPixelt Mon Specifications

  • Number of Screens

    One

  • Display (Viewing Area)

    7" (6.14"H × 3.27"V) (156.0mm x 83.28mm)

  • Resolution (Pixels)

    800H x RGB x 480V (1.2 million pixels)

  • Dot Pitch

    0.065 mm (W) x 0.175 (H)

  • Pixel Pitch

  • Pixel Response

    <30ms

  • Brightness (in cd/m²)

    380 cd/m²

  • System

    NTSC/PAL auto recognition

  • Screen Formats

  • Contrast Ratio

    400:1

  • Inputs per panel (total)

    1 Composite, 1 Component HD/SD

  • Signal Input

  • Viewing Angles

    130° H x 120° V

  • Dimensions

    7.60" W x 5.16" H x 2.16" D

  • Approx. Weight

    1.8 Lbs.

  • Power Consumption

    10-17 VDC, 600 mA

  • Other

  • Note

  • Special Features

  • Color

  • Warranty

  • Microphone Power / Mute

  • UPC Code

    150468095688

About Marshall VR70PHDA 7in HD/SD 1.2 TFT-MegaPixelt Mon

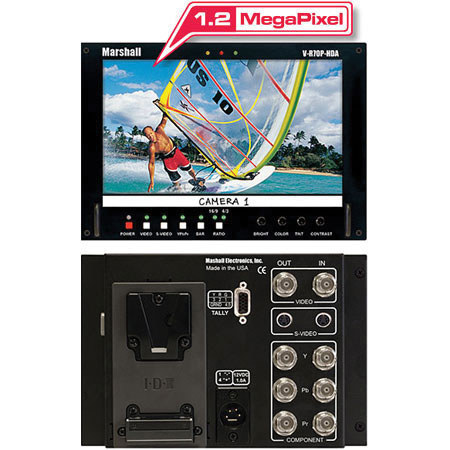

• The V-R70P-HDA features our completely Digital TFT-MegapixelT high resolution LCD screen with 1.2 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection.

Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion.

Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.

What's in the box:

  • "V" Mount Battery Adapter
  • ¼-20 Mounting Plate
  • Universal Voltage Class-2 Power Supply
