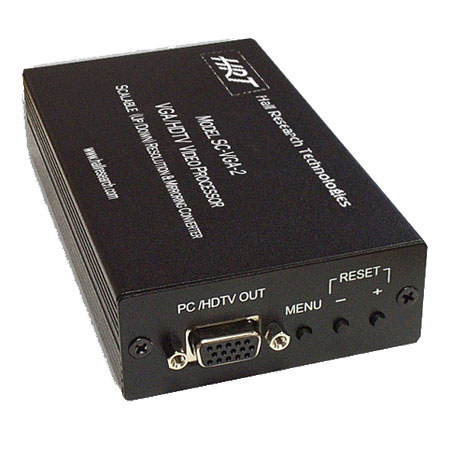

Mirror Image VGA Mirror Adapter Box with Video Scaler, Scan Converter & Format Transformer Function
The VGA Mirror Adapter Box VGAMIRROR from Mirror Image is a high-performance universal VGA/HDTV to VGA/HDTV scan rate converter that can also mirror or duplicate the VGA input signal on the X axis. The video process combines the functions of a video scaler, scan converter and format transformer. With this device, the resolution of any PC or HDTV video signal can be scaled up or down to any other PC or HDTV.
This unit automatically detects input mode and timing parameters and can be controlled via a simple, front-panel, push-button menu system. Since VGA output can be mirrored horizontally, it makes this unit an ideal solution for teleprompting and rear-projection systems. It also features a large video memory for real-time frame rate capture and conversion.
Moreover, the picture output can be fine tuned (position & phase) and format conversion between RGBHV and YPbPr is possible. This unit is packaged in a durable and portable metal EMI shielded enclosure.
HDTV (480i 576i 480p 567p 720p 1080i)
|Connector Type||HD 15 Female|
|Power||115VAC to 12VDC @ 800mA In-Plug Switching Adapter|
|Dimensions||1-3/16 x 3 x 5-1/2" (30 x 75 x 140mm)|
|Weight||10 oz. (280 grams)|
|Warranty||Mirror-image Teleprompter warranty|
