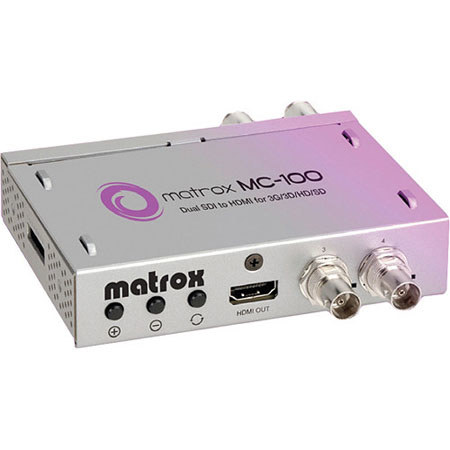

Matrox MC-100 Dual SDI to HDMI Mini Converter for 3G/3D/HD/SD

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About the Matrox MC-100

The Matrox MC-100 solves all challenges in a easy-to-use device. Matrox MC-100 is a dual SDI to HDMI mini converter that supports a wide range of display resolutions through 3G, Dual Link, HD and SD-SDI. This single portable unit can be used as a HD-SDI switcher, a distribution amplifier, a multiplexer and a 3D processing unit, making it the most versatile mini converter on the market. It should be in every video professional's toolbox.

Matrox MC-100 Includes

  • Matrox MC-100 Dual SDI to HDMI Mini Converter
  • Universal Power Supply with International Socket Adapters
  • Matrox 3 Years Limited Warranty

Matrox MC-100 Features

  • Monitor SDI on inexpensive HDMI displays: Take your SDI video signal with 16 channels of embedded audio and convert it to HDMI. Whether you're using RGB or YUV, Matrox MC-100 maintains the full 10-bit video spectrum of the signal, up to a resolution of 1920 X 1080
  • Distribute and amplify SDI signals: Configure MC-100 as a distribution amplifier to boost the strength of your SDI signals by 300 meters on SD-SDI, 100 meters on HD-SDI and 70 meters on 3G-SDI
  • Configure using On-Screen-Display: Quickly and efficiently configure your Matrox MC-100 via the on-screen-display (OSD) menu available on all outputs. There is no need for a computer connection. Every MC-100 feature is accessible through the OSD, which is controlled by 3 buttons directly on the unit
  • Switch between two SDI signals: Toggle between two SDI inputs at the touch of a button, glitch-free as per SMPTE RP-168. MC-100 is also a loss-of-signal switcher. You can configure the device to automatically switch to the second valid input if the first one is lost or becomes invalid
  • Multiplex two SDI signals into one 3G video feed: Transport your SDI signals efficiently using MC-100 to multiplex two HD-SDI signals into a single 3G-SDI stream. Being able to multiplex two SDI signal means that you'll need just half the wiring to distribute HD-SDI video signals
  • Process and monitor 3D SDI signals in real time: Use the cutting-edge processing power of MC-100 to make multiple adjustments on stereoscopic video feeds in real time. Hardware buttons let you perform Horizontal Image Translation (HIT) - sub-pixel convergence and divergence - on both video inputs

Matrox MC-100 Specifications

Inputs and Outputs Two BNC 3G/HD/SD-SDI inputs
Two BNC 3G/HD/SD-SDI outputs
HDMI output
Mini USB Type B for firmware updates
Standards SDI compliance with SMPTE-259/292/372/424 and SMPTE RP168
SDI support of YUV 4:2:2 8-bit/10-bit and 4:4:4 on bypass
SDI redundant inputs with loss-of-signal switcher
Automatic SDI output selection between 3G/HD/SD-SDI dependent on input signal
HDMI support of YUV 4:2:2 and 4:4:4 on bypass as well as RGB
Input Display Resolutions NTSC
720P 50/59.94/60
1080I 50/59.94/60
1080P 23.98/24/25/29.97/30
1080PSF 23.98/24/25/29.97/30
1080P (Level A) 50/59.94/60
1080P (Level B) 50/59.94/60
1080P Dual Link 50/59.94/60
Display Formats 3D display formats on SDI: Top/Bottom, Side-by-Side
3D display formats on HDMI: Top/Bottom, Side-by-Side
Frame Packing (HDMI 1.4a)
Analysis display modes: Anaglyph, 50/50, Difference
Audio SDI audio: 16 channels embedded
HDMI audio: 8 channels embedded, selectable between the first and second set of 4 pairs
Electrical and Operating Requirements Unit voltage and amperage: 5V/3Amps
Operating temperature: 0 to 40deg. C
Storage temperature: -40 to 75deg. C
Maximum altitude for operation: 3,000 meters
Maximum altitude for transport: 12,000 meters
Operating humidity: 20 to 80% relative humidity (non-condensing)
Storage humidity: 5 to 95% relative humidity (non-condensing)
Dimensions (W x H x D) 125 x 118 x 26mm / 4.92 x 4.64 x 1.02 inch
