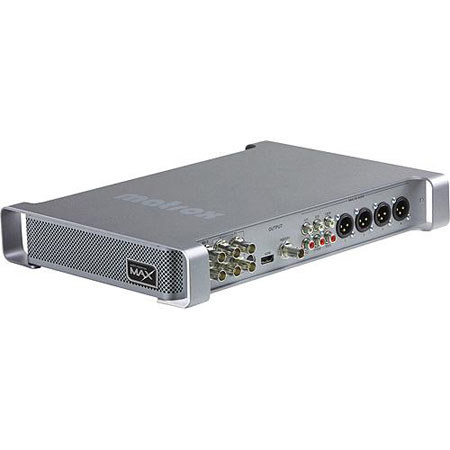

Matrox MXO2 with Max for Desktop, H.264 Encoding

Matrox MXO2 with Max for Desktop, H.264 Encoding, PC and Mac Compatible

SKU: VDMRMXO2MAXN
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Matrox MXO2 Specifications

Related Articles & Videos

About Matrox MXO2

The MXO2 Max for Desktop from Matrox is a device that combines the functionality of an HDMI and analog I/O card in the form factor of a miniature breakout box. It will capture, convert and play multiple video formats. This model features an adapter designed for use with desktop PC or Intel-based MacBook Pros, Mac Pros and Apple Xserve systems. This model additionally features Matrox MAX technology for faster than real-time H.264 encoding.

This device's small footprint makes it easy to transport. It is compatible with most industry-standard applications, such as Final Cut Pro, Adobe Premiere Pro and Photoshop, among others. Moreover, its color-calibration tool can be used to turn your HDMI monitor into a professional-grade video monitor.

Matrox MXO2 Features

  • This model is designed for use with PC or Mac desktop systems
  • This model features Matrox MAX technology for faster than real-time H.264 encoding
  • It features a small footprint and is easy to connect to cameras and monitors
  • Capture and play back high-definition video in multiple formats
  • Turn your HDMI screen into a professional-grade video monitor with color-calibration tools, including blue-only
  • Genlock SD analog black burst (bi-level) or HD tri-level sync are available
  • A 10-bit hardware, scaling engine allows for real-time up-scaling, down-scaling, and cross-conversion on capture and playback
  • Up to (5) user-selectable simultaneous video outputs for HD and/or SD on HDMI, SDI, and analog are available
  • This unit supports 5.1 surround-sound monitoring on the HDMI output
  • It supports RS-422 machine control for frame-accurate capture and print-to-tape
  • Capture to a variety of Adobe Premiere Pro and Final Cut Pro codecs, including Apple ProRes 422 HQ and 10-bit uncompressed HD
  • File-based workflow support is available for XDCAM, XDCAM HD, XDCAM EX, P2, and P2HD
  • This solution supports RED workflow
  • HD-SDI closed-captioning support is a standard feature
  • It is compatible with your applications such Final Cut Pro, Adobe Premiere Pro, and Adobe Photoshop, among others

What's in the box:

  • Matrox MXO2 Max for Desktop
  • Matrox MXO2 MAX I/O Device
  • Matrox MXO2 PCIe Host Adapter
  • 3' (1m) Matrox MXO2 PCIe Cable
  • Matrox MXO2 External Power Supply and IEC-C13 Power Cord
  • Matrox 3 Years Hardware Warranty
