Matrox

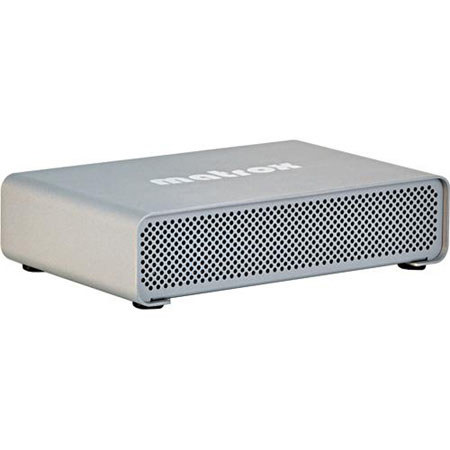

Matrox MXO2 Mini High Definition HDMI & Analog I/O Device with PCIe x 1 Host Adapter for Desktop, Win/Mac

SKU: VDMRMXO2MIND MFR: MXO2MINID
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$399.00
Qty:

Add to Wishlist

About the Matrox MXO2

The Matrox MXO2 Mini is sleek little device for Mac and PC which gives you the added advantage of portability. You can take it with you wherever you go. Use it with a desktop system and your favorite applications including Final Cut Pro, Adobe Premiere Pro and Photoshop and many more.

Capture and playback high definition video via HDMI and analog component; or NTSC and PAL via analog component, S-Video and composite. Convert your standard definition videos to high definition, or vice versa, while capturing or playing out, using Matrox MXO2 Mini's high-quality dedicated hardware.

Turn your HDMI screen into a professional-grade video monitor with Matrox's unique color calibration tool. Easily edit AVCHD footage by capturing into an edit-friendly compressed or uncompressed format.

Matrox MXO2 Includes

  • Matrox MXO2 Mini Input/Output Device
  • Matrox MXO2 PCIe Cable (1 meter)
  • Matrox MXO2 Mini External Power Supply
  • Two S-Video Adapters
  • Matrox MXO2 PCIe x 1 Host Adapter (for Use with Mac Pro and PC Desktop)
  • Matrox 3 Years Hardware Warranty

Summary of Customer Reviews

(3)
Customers most agreed on the following attributes:
Reviewer Profile:
Power user (2) , Enthusiast (1)

Matrox MXO2 Features

  • Works with Mac and PC desktops
  • Small, lightweight, external box that's easily connected to your cameras and monitors
  • Capture and playback high definition video via HDMI and analog component; or NTSC and PAL via analog component, S-Video and composite
  • Turns your HDMI screen into a professional-grade video monitor with color calibration tools including blue-only
  • High-quality 10-bit hardware scaling engine for realtime upscaling, downscaling and cross conversion on capture and playback (See Specifications section for scaling features supported on Mac and PC)
  • Stereo RCA and up to 8 channels of HDMI audio input and output
  • 5.1 and 7.1 surround sound monitoring on the HDMI output
  • Easily edit AVCHD footage by capturing into an edit-friendly compressed or uncompressed format
  • Works with your favorite applications including Final Cut Pro, Adobe Premiere Pro, Adobe Photoshop and many more
  • Inexpensive HDMI monitoring with 10-bit 4:2:2 color precision: It turns your HDMI screen into a professional-grade video monitor with Matrox's unique color calibration tool. Controls for hue, chroma, contrast, brightness and blue-only are provided.
  • High quality 10-bit hardware scaling: Matrox MXO2 Mini's dedicated 10-bit hardware scaling engine provides high-quality capture and playback in the formats you need
  • HD to SD downscaling: Matrox MXO2 Mini provides realtime HD to SD downscaling with proper conversion of the HD color space to the SD color space and proper aspect ratio conversion to anamorphic, letterbox and center cut. You can monitor or record an SD master of your HD project in real time.
  • SD to HD upscaling: Matrox MXO2 Mini provides realtime SD to HD upscaling with proper conversion of the SD color space to the HD color space. MXO2 will "pillarbox" 4:3 footage and scale 16:9 SD footage to full screen.
  • Cross conversion: Matrox MXO2 Mini offers realtime cross conversions from 720 to 1080 and 1080 to 720.
  • Editing workflows for Mac: On the Mac, Matrox MXO2 Mini lets you capture from either the analog or HDMI input to uncompressed video or to any of the compression formats supported by Apple Final Cut Pro including ProRes.
  • Editing workflows for PC: On the PC, Matrox MXO2 Mini lets you capture to uncompressed or to the highly-efficient Matrox MPEG-2 I-frame HD/SD codec from either the analog or HDMI input.

Matrox MXO2 Specifications

Video inputs HDMI - HD - 10-bit
Component - HD/SD - 10-bit
Y/C (S-Video) - 10-bit
Composite - 10-bit
Audio inputs 2 RCA - stereo pair (unbalanced)
HDMI embedded - up to 8 channels
24-bit 48 kHz
Video outputs HDMI - HD/SD - 10-bit
Component - HD/SD - 12-bit
Y/C (S-Video) -12-bit
Composite - 12-bit
Audio outputs 2 RCA - stereo pair (unbalanced)
HDMI embedded - up to 8 channels
Codecs: Mac On systems with a 2.4 GHz or faster Core2 Duo CPU you can capture to DVCPRO HD and to SD codecs including uncompressed, DV, DVCPRO, DVCPRO50, ProRes 422 and ProRes 422 HQ. On systems with at least two Dual-Core or a Quad-Core 2.4 GHz or faster CPU you can also capture to more HD codecs including ProRes 422 and ProRes 422 HQ. On systems equipped with storage that has sufficient transfer bandwidth, you can capture uncompressed 8- and 10-bit HD.
Codecs: PC Matrox MPEG-2 I-frame HD adjustable from 50 to 300 Mbps
Matrox MPEG-2 I-frame SD adjustable from 10 to 50 Mbps
Uncompressed 8- and 10-bit
10-bit hardware scaling: Mac Up/down/cross conversion on capture and output
10-bit hardware scaling: PC First release supports down conversion on output. Additional features will be made available in subsequent software releases at no charge.
Regulatory compliance FCC Class A, CE Mark Class A, C-Tick Mark, VCCI
RoHS Directive 2002/95/EC
System compatibility: Mac Mac Pro and Intel-based MacBook Pro running Mac OS X Leopard 10.5.6 or higher
System compatibility: PC PC desktops running Windows XP (32-bit) and Windows Vista (32- and 64-bit)
Dimensions 6-1/2" x 4-5/16 x 1-1/2" (166mm x 110mm x 40mm)
Weight 9.9 ounces (280 grams)
Warranty Matrox 3 years hardware warranty
