Item Includes
Magnet mount - Lapel Clip - Dual Tie Clip - Pin mount - Two Foam Windscreens - Mild Boost Equalization Cap (2 pcs.) - High Boost Equalization Cap (2 pcs.) - RPM626 Preamplifier with hardware
|
Description

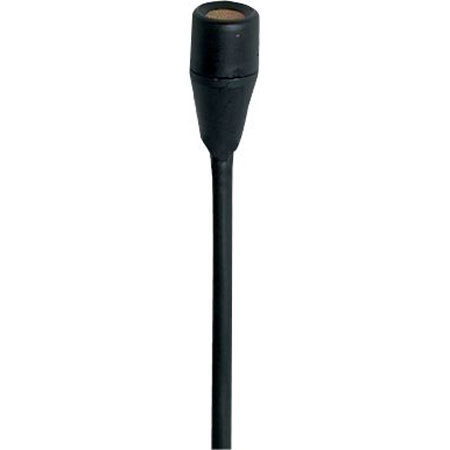

Shure models MC50B (omni) and MC51B (unidirectional) are subminiature, electret condenser lavalier microphones. They provide uncompromised sound quality and high reliability with minimal visibility in sound reinforcement applications such as television broadcasting and stage performances.
Despite its small size, the microphone's condenser element provides full, clear and natural reproduction of speech. Each microphone is supplied with two foam windscreens to minimize wind noise. The supplied mounting accessories consist of a lapel clip, a tie clip, a pin mount, and a magnet mount, giving the user a wide variety of options for placement.
|
Features
 |
Extended frequency response with user changeable equalization caps for response shaping (omni only) |
|
Low visibility with a variety of options for mounting |
|
WL50B (omnidirectional) Black with matching accessories |
|
Low handling noise |
|
Legendary Shure quality, ruggedness, and reliability |
|
All models include magnet mount, lapel clip, dual tie clip, pin mount, and two foam windscreens |
Specifications
| Type | Condenser (electret bias) |
| Applications | Sound Reinforcement, T.V., Broadcasting and Stage |
| Frequency Response | 20 to 20,000 Hz |
| Polar Pattern | Cardioid |
| Impedance | 136 Ohms Actual ( rated at 150 ohms ) |
| Output Level | -46.0 dBV/Pa (1 Pa=94 dB SPL) |
| Connector | Cable 1.5 m (5 ft.), small-diameter, shielded, with miniature female 4-pin connector (TA4F type). |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector. |
| Weight | 121 g (4.3 oz.) with cable, connector, and preamplifier. |
| Power Requirements | 121 g (4.3 oz.) with cable, connector, and preamplifier. |
| | |
|
