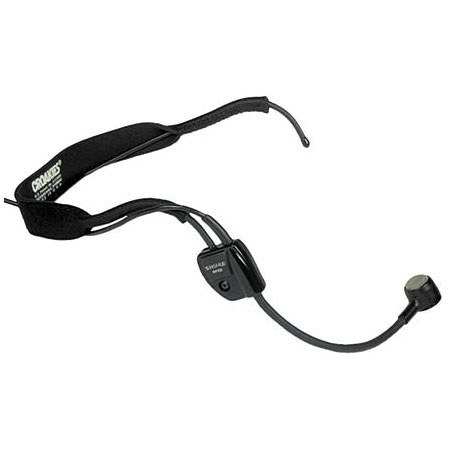

Shure WH30XLR Headworn Cardioid Condenser Microphone with a 1.5 m (5 ft.) Cable & In-Line Preamplifier.
Mfr. Part: WH30XLR SKU: VDSHWH30XLR
enlarge image
|
|
 |
|
|
|
Item Includes
Mic Preamplifier RPM420 - 1.5m (5 ft.) hi-flex cable - 3 Pin XLR Connector
|
Description
The Shure Model WH30XLR is a light yet rugged headset microphone. Designed for vocalists and instrument-playing vocalists, the WH30 utilizes a high quality electret-condenser cartridge suitable for all applications where mobility, comfort, low microphone-visibility, and high sound quality are required. Because of its cardioid (unidirectional) pickup pattern, the WH30 provides isolation from extraneous sound sources and high gain-before-feedback.
The wireframe and gooseneck adjust to any head size and shape. An integrated elastic CROAKIES®. headband comfortably pads and secures the headset. The WH30 is supplied with two snap-on windscreens, clothing clip, storage bag and cable-management device.
The WH30 headset microphone is a perfect fit for those who desire total freedom of movement and need the high-quality audio of a condenser microphone.
WH30XLR: For wired applications, the WH30XLR is supplied with a 1.5m (5 ft.) hi-flex cable and high quality mic preamplifier (RPM420) with a three pin XLR connector. The RPM420 preamplifier requires phantom power from any 11 52 V source. |
Features
 |
Tailored frequency response enhances vocal range |
|
Smooth, natural frequency response comparable to professional condenser hand-held microphones |
|
Flexible gooseneck for optimum microphone placement |
|
Isolation shock mount reduces vibration noise |
|
Low-profile, lightweight design |
|
Cardioid polar pattern provides maximum gain before feedback |
|
High sound pressure level capability |
|
Secure snap-on windscreen reduces "p" pops |
|
Matte black finish for low visibility |
|
High input clipping level helps avoid overload distortion |
|
Low self-noise and high sound pressure level capability |
|
Reliable at temperature and humidity extremes |
Specifications
| Type | Condenser, electret bias with integrated preamplifier |
| Applications | Vocalists and instrument-playing vocalists, |
| Frequency Response | 40 to 20,000 Hz |
| Polar Pattern | Unidirectional (cardioid) |
| Impedance | Rated 150 ohms. (actual) (Tolerates loads as low as 150 ohms. with reduced clipping level) |
| Output Level | (at 1 kHz; 0 dB = 1 V/Pascal) -54.5 dB (1.9 mV) |
| Connector | Cable Connector XLR |
| Polarity | Positive sound pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector. |
| Weight | Headset and cord: 60 g (2.1 oz) Preamplifier: 99 g (3.5 oz) |
| Power Requirements | Recommended Operating Voltage : 11 52 VDC Phantom power |
| | |
|
|
