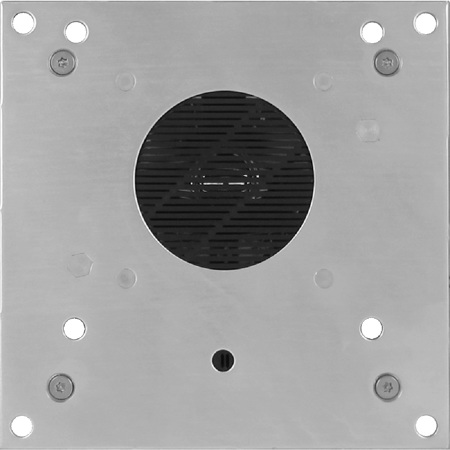

Viking E-1600-55A ADA Universal Emergency Phone Kit

The Viking E-1600-55A ADA Universal Emergency Phone Kit is designed to provide quick and reliable hands-free communication for any standard analog telephone line or analog phone system station port. This phone meets ADA requirements for elevator/ emergency telephones and can be programmed from any Touch Tone phone. The phone can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

The E-1600-30A-EWP phone can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected" LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile E2 memory. All units are phone line powered, requiring no batteries or external power and are compatible with common Central Station Monitoring equipment.

The E-1600-55A is a universal emergency phone kit for installing behind elevator panels, or an installation requiring a custom panel. The finished panel should provide: (4) studs (#6 diameter minimum) for mounting plate, audio holes for speaker and microphone, a momentary SPST push button switch and a 0.25" diameter mounting hole for the LED. Alternatively, the LED can be cut off and the wires connected to an integral switch with LED (often found in elevators).
