Viking E-1600 Specifications

  • Applications

    Elevators
    Parking ramps/lots
    ATM machines
    Area of refuge locations
    Lobbies
    Entryways
    Campus emergency stations
    Roadside emergency stations
    Stadiums
    Convention centers

  • Power

    Telephone line powered. Minimum 24V DC talk battery voltage, with a minimum loop current of 20mA loop. Loop current may be boosted on low current lines with a Viking Model TBB-1B talk battery booster

  • Connections

    Gel-filled butt connectors

  • Operating Temperature

    -26deg. C to 54deg. C (-15deg. F to 130deg. F)

  • Humidity

    Up to 100%

  • UPC Code

    615687221978

About Viking E-1600

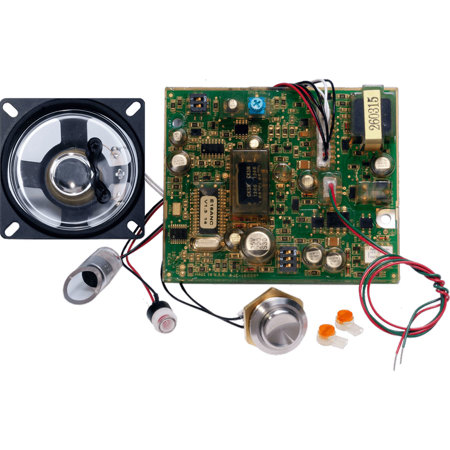

The Viking E-1600-50A-EWP ADA Compliant Handsfree Emergency Phone with Enhanced Weather Protection/Built-in Auto Dialer and Digital Announcer is designed to provide quick and reliable handsfree communication for any standard analog telephone line or analog phone system station port.

The Viking E-1600-50A-EWP ADA Compliant Handsfree Emergency Phone meets ADA requirements for elevator/ emergency telephones and can be programmed from any Touch Tone phone. The phones can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

The Viking E-1600-50A-EWP ADA Compliant Handsfree Emergency Phone can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected" LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile E2 memory. All units are phone line powered, requiring no batteries or external power and are compatible with common Central Station Monitoring equipment.

For outdoor installations where the unit is exposed to precipitation or condensation, select this phone with Enhanced Weather Protection (EWP). This EWP product features foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

Viking E-1600 Features

  • Meets ADA requirements for Emergency Phones - Can automatically light the "Call Connected" LED for the hearing impaired, Transmits a unique location I.D. code or voice announcement, Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models
  • Dials up to 5 emergency numbers
  • Cycles through backup emergency and non-emergency numbers on busy or no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15deg.F to 130deg.F)
  • 9 different chassis or board only available
  • Central Station Monitoring capability (dials 2 numbers)
  • Standard Mic Mounting Boot - Glue or screw directly behind 0.04-0.125" diameter hole in panel
  • EWP Mic Mounting Boot - Glue to the back of your panel at an upward angle (shown left) behind a 0.10-0.25" diameter hole

Key Features

  • Non-volatile digital voice announcer
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models

What's in the box:

  • Viking E-1600-50A-EWP ADA Compliant Handsfree Emergency Phone
  • Viking 2 Year Limited Warranty
