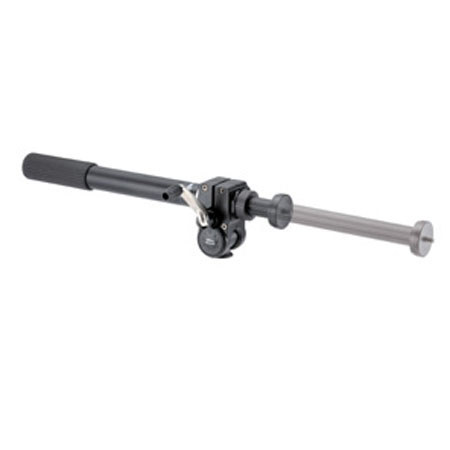

The Velbon V4 Articulating Boom Arm is an ingenious new mechanism combining a geared/slide elevator with a 180degree tilt arm and a 360degree horizontal pan. It is quick and easy to use: a single twist of the grip at the end of the multi-angle arm loosens both the tilt and rotation and when the arm is in the desired position, a twist of the grip in the opposite direction re-engages the lock and the arm is fixed again.
I t will fit onto and transform almost any tripod, thanks to the included choice of 1/4" or 3/8" mounting threads and can accommodate most tripod heads via the end pedestal which as a 1/4" screw. Uses include Macro work, copying and any application where fine adjustment of the camera position is an advantage.
|Max Length||545mm (21.45")|
|Extension Travel||205mm (8.07")|
|Min Length||340mm (13.38")|
|Arm Diameter||29mm (1.14")|
|Grip Diameter||34mm (1.33")|
|Height (in horizontal position)||88mm (3.46")|
|Weight||572g (20.17 oz)|
