Vortex Optics Kaibab HD 20x56 Specifications

  • Prism Type

    Roof

  • Magnification

    20x

  • Objective Lens Diameter

    56mm / 2.20"

  • Angle of View

    3.2deg. (actual)

  • Field-of-View

    168' at 1000 yd / 55.78 m at 1000 m

  • Minimum Focus Distance

    23' / 7.01 m

  • Exit Pupil Diameter

    2.8 mm

  • Eye Relief

    15 mm

  • Interpupillary Adjustment

    60 - 76 mm / 2.36 - 2.99"

  • Focus Type

    Center

  • Tripod Mount

    Yes (Adapter Included)

  • Dimensions (H x W x D)

    7.7 x 5.7 x 2.5" / 19.56 x 14.48 x 6.35 cm

  • Weight

    43.5oz / 1233.204g

  • UPC Code

    875874005396

3 Accessories for Vortex Optics 20x56 Kaibab HD Water Proof Roof Prism Binocular with 3.2 Degree Angle of View, Green

  • All Accessories (3)
  • Adapters & Mounts (1)
  • Straps & Slings (2)

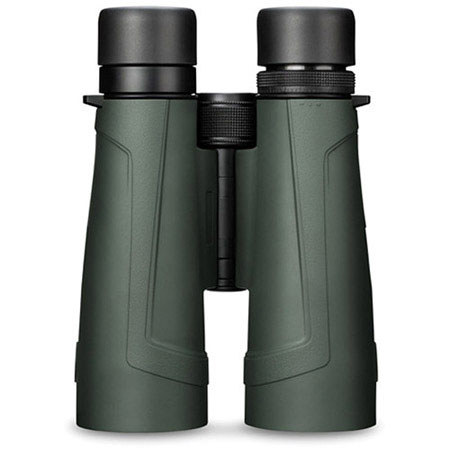

About Vortex Optics Kaibab HD 20x56

The Vortex Optics Kaibab HD 20x56 Roof-Prism Binocular is designed for high performance in low-light conditions. Whether you're bird-watching or hunting, dawn and dusk are the perfect times to spot and view game and you need a binocular that can deliver. To make the most of the large 56mm objectives, the lenses are made of High Density (HD) Extra-low Dispersion (ED) glass with a phase-corrected apochromatic optical system. This produces images that are bright and crisp, with true color transmission, across the entire field of view without distortion.

All the optical surfaces are fully-multicoated with Vortex Optics's XRPlus coatings. This anti-reflective coating ensures minimal light loss and maximum light transmission through the lenses. The roof prisms feature dielectric coatings with better than 99% reflectivity to make sure as much light as possible makes it to your eye.

The optical tubes are argon-filled and o-ring sealed to be water and fogproof. This is especially important at dawn and dusk when dew is prevalent and temperature changes can cause condensation. The Kaibab has a center focus wheel that is easily accessible with either hand, with a right-hand dioptric adjustment for crisp and sharp focusing. Twist-up eyecups let you customize your eye relief, with or without eyewear.

Rubber armoring on the body helps ensure a secure non-slip grip, while providing protection against drops and impacts. Vortex Optics recommends that the binocular be mounted on a tripod, so a tripod adapter is included. Given their size and magnification, using the Kaibab with a tripod will give your arms a break and provide a solid platform with reduced vibration and shake.

APO System
Apochromatic optical system combines with HD glass to provide unmatched color sharpness.

HD Lens Elements
Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.

XRPlus Fully Multi-Coated
Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.

Dielectric Prism Coatings
Multi-layer prism coatings provide bright, clear, color-accurate images

Plasma Tech
Cutting edge application process provides unparalleled coating durability and performance.

Phase Correction
Coating on roof prism models enhances resolution and contrast.

Roof Prism
Valued for greater durability and a more compact size

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Rubber Armor
Provides a secure, non-slip grip and durable external protection.

56 mm Lenses
Maximize low light performance.

Multi-Position Eyecups
Twist up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses.

Center Focus Wheel
Adjusts the focus of both binocular barrels at the same time.

Locking Diopter
Adjusts for differences in a user's eyes. Located on right eyepiece.

Tripod Adaptable
Compatible with a tripod adapter, allowing use on a tripod or car window mount.

What's in the box:

  • Vortex Optics Kaibab HD 20x56 Roof-Prism Binocular
  • Rainguard
  • Tethered Objective Lens Covers
  • Comfort Neck Strap
  • Deluxe Padded Carry Case
  • Uni-Daptor Quick-Release Tripod Adapter
  • Vortex Optics Lifetime Warranty
