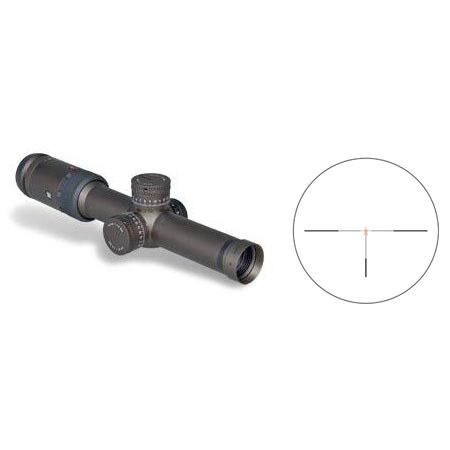

Vortex Optics 1-4x24mm Razor HD Series Riflescope, Stealth Shadow Finish with Illuminated EBR-556 MOA Reticle, 30mm Tube

Vortex Optics
SKU: VORRZR124E MFR: RZR124-E

About Vortex Optics 1-4x24 Rifle Scope

Vortex Optics breaks new ground with the introduction of Razor HD tactical riflescopes-built literally from the ground up to meet the demanding needs of precision shooters as well as dangerous game hunters. Expect fast handling and deadly accuracy when it gets up close and personal with the advanced Razor HD 1-4x24 riflescope.

Vortex Optics 1-4x24 Rifle Scope Features

  • First Focal Plane: Subtensions remain consistent throughout magnification range.
  • APO Objective Lens System: Corrects color across the entire visual color spectrum-virtually eliminating chromatic aberration across the entire field of view.
  • Optically Indexed Lenses: Delivers optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction.
  • XD Lens Elements: Extra-low dispersion (XD) glass enhances resolution, color and contrast.
  • XR Lens Coatings: Vortex XR proprietary anti-reflection lens coatings increase light transmission with multiple coatings on all air-to-glass surfaces.
  • 30 mm Tube: Provides greater strength and wider adjustment latitude as compared to a 1-inch tube.
  • One-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance as well as strength and waterproofness.
  • Aircraft-Grade Aluminum: Construction from a solid block of 6061-T6 aircraft-grade aluminum delivers increased strength and rigidity.
  • Waterproof: O-ring seals prevent moisture, dust and debris from getting inside the tube for reliable performance in all environments.
  • Fogproof: Filled with argon gas to inhibit internal fogging over a wide range of temperatures.
  • Shockproof: Lenses are locked in place, fore and aft, with machined locking rings to remain in perfect alignment and resist impact.
  • Hard Anodized Finish: Type-3 hard-coat anodization is durable; the low-glare matte surface of Stealth Shadow Black helps camouflage the shooter's position.
  • ArmorTek: Ultra-hard, scratch-resistant coating repels oils and corrosive salts on outer glass surfaces.
  • Tall Uncapped Turrets: Make range calculation and shooting adjustments fast and accurate with subtension marks that match the reticle.
  • First Focal Plane Reticle: Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications-no shift in point of impact during zoom.
  • Friction Reduction System: Provides superior durability, repeatability and accuracy for the life of the product. Prevents galling or deformation of the erector screw contact point.
  • Turret Screws: Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are ultra-precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
  • Erector Tube System: Precision-machined from premium brass alloy w/anti-galling properties f/great strength & durability. The erector spring of chromium vanadium withstands compressn, has high fatigue resistance & is tumble-polished to a mirror finish f/micro-precise elevation & windage adjustments.
  • Single Spring Construction: Fully constrains (without over-constraining) the optical system for predictable, improved accuracy throughout the range of elevation adjustment.
  • Glass-etched Reticle: Protected between two layers of glass (not made from wire) for optimum durability and reliability.
  • Illuminated Reticle: Electronic illumination aids in low light visibility of reticle. Battery included.
  • Illumination Control: Can be turned on or off with a single click between each intensity level-allowing access to a preferred illumination setting without having to progress through each intensity level.
  • MagView Bar: Combines a fiber optics magnification indicator with raised rear-facing magnification references for clear viewing in low light conditions. Patent pending.
  • Radius Bar: Fiber optic turret rotation indicator provides illuminated and tactile point of reference for turret rotations. Patent pending.
  • Fast Focus Eyepiece: Allows quick and easy reticle focusing.
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Vortex Optics 1-4x24 Rifle Scope Specifications

Magnification
1x - 4x
Objective / Field of View
24mm / 94.5' (28.8m) @ 1x at 100 yds.(100m), 24.2' (7.4m) @ 4x at 100 yds.(100m)
Main (Center) Tube Diameter
30mm
Objective Tube Diameter
1.3"
Eyepiece Tube Diameter
1.7"
Lens Coatings
XR Anti-Reflective Fully Multi Coated Optics
Reticle
Illuminated EBR-556 MOA
Reticle Image Plane (Magnifying)
First
Brightness Adjustments
10 Intensity Levels
Exterior Finish
Stealth Shadow Black Finish
Windage & Elevation Adjustments (MOA)
1/4-M.O.A. Per Click
Maximum Adjustment
200 MOA W & E
Exit Pupil
Not Specified by Manufacturer
Eye Relief
3.9" / 99.06mm @ 1x, 3.9" / 99.06mm @ 4x
Parallax Correction Control
100 Yards
Diopter Adjustment
No Diopter Adjustment
Battery
CR-2032
Battery Life
Depends on Intensity
Material
Aluminum Alloy
Nitrogen Filled
Neutral Pressure Argon Purging
Waterproof / Fogproof
Yes
Length
10.3", (261.6mm)
Mounting Length
6.4"
Weight
20.2 oz., 572.7g
Special Features
Reticle Image in the First Focal Plane.
Argon Gas Purging.
Illuminated Glass Etched Reticle.
