Vortex Optics RZR551 5-20x50mm Razor HD Riflescope Specifications

  • Magnification

    5x - 20x

  • Objective / Field of View

    50mm / 13.6' (4.2m) @ 5x at 100 yds.(100m), 5.2' (1.6m) @ 20x at 100 yds.(100m)

  • Main (Center) Tube Diameter

    35mm

  • Objective Tube Diameter

    2.3"

  • Eyepiece Tube Diameter

    1.7"

  • Lens Coatings

    XR Anti-Reflective Fully Multi Coated Optics

  • Reticle

    Illuminated EBR-2 Mil Rad

  • Reticle Image Plane (Magnifying)

    First

  • Brightness Adjustments

    10 Intensity Levels

  • Exterior Finish

    Stealth Shadow Black Finish

  • Windage & Elevation Adjustments (MOA)

    .1 Mil Rad Per Click

  • Maximum Adjustment

    36 Mil Rads W & E

  • Exit Pupil

    Not Specified by Manufacturer

  • Eye Relief

    3.9" / 99.06mm @ 5x, 3.9" / 99.06mm @ 20x

  • Parallax Correction Control

    Side Parallax Adjust 40 Yards to Infinity

  • Diopter Adjustment

    No Diopter Adjustment

  • Battery

    CR-2032

  • Battery Life

    Depends on Intensity

  • Material

    Aluminum Alloy

  • Nitrogen Filled

    Neutral Pressure Argon Purging

  • Waterproof / Fogproof

    Yes

  • Length

    15.8", (401.3mm)

  • Mounting Length

    6.9"

  • Weight

    35.2 oz., 997.9g

  • Special Features

    Reticle Image in the First Focal Plane.
    Argon Gas Purging.
    Illuminated Glass Etched Reticle.

7 Accessories for Vortex Optics 5-20x50mm Razor HD Series Riflescope, Stealth Shadow Finish with Illuminated EBR-2 Mil Rad Reticle, 35mm Tube

  • All Accessories (7)
  • Sights & Accessories (2)
  • Cleaning Accessories (4)
  • Bags & Cases (1)

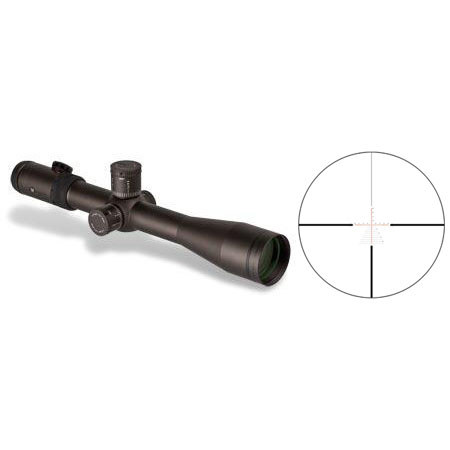

About Vortex Optics RZR551 5-20x50mm Razor HD Riflescope

Vortex Optics breaks new ground with the introduction of Razor HD tactical riflescopes. Built literally from the ground up to meet the demanding needs of precision shooters, the all-new Razor HD 5-20x50 is a state-of-the-art long-range performer-built on a solid 35mm one-piece tube and packed with more than a dozen unique performance and optical features.

Vortex Optics RZR551 5-20x50mm Razor HD Riflescope Features

  • First Focal Plane: Subtensions remain consistent throughout magnification range.
  • APO Objective Lens System: Corrects color across the entire visual color spectrum-virtually eliminating chromatic aberration across the entire field of view.
  • Optically Indexed Lenses: Delivers optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction.
  • XD Lens Elements: Extra-low dispersion (XD) glass enhances resolution, color and contrast.
  • XR Lens Coatings: Vortex XR proprietary anti-reflection lens coatings increase light transmission with multiple coatings on all air-to-glass surfaces.
  • 35 mm Tube: Provides more internal room to accommodate a greater range of windage and elevation adjustment to accurately dial longer-range shots.
  • One-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance as well as strength and waterproofness.
  • Aircraft-Grade Aluminum: Construction from a solid block of 6061-T6 aircraft-grade aluminum delivers increased strength and rigidity.
  • Waterproof: O-ring seals prevent moisture, dust and debris from getting inside the tube for reliable performance in all environments.
  • Fogproof: Filled with argon gas to inhibit internal fogging over a wide range of temperatures.
  • Shockproof: Lenses are locked in place, fore and aft, with machined locking rings to remain in perfect alignment and resist impact.
  • Hard Anodized Finish: Type-3 hard-coat anodization is durable; the low-glare matte surface of Stealth Shadow Black helps camouflage the shooter's position.
  • ArmorTek: Ultra-hard, scratch-resistant coating repels oils and corrosive salts on outer glass surfaces.
  • RZR Zero Stop: Rapid Zero Return (RZR) feature stops the turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials-even when setting the zero-stop position. Patent pending.
  • RZR Zero Stop Turrets: Spin quickly and stop at the zero setting without counting clicks. Subtension marks match the reticle making range calculation and shooting adjustments fast and accurate.
  • First Focal Plane Reticle: Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications-no shift in point of impact during zoom.
  • Single Spring Construction: Fully (without over-constraining) constrains the optical system for predictable, improved accuracy throughout the range of elevation adjustment.
  • Glass-etched Reticle: Protected between two layers of glass (not made from wire) for optimum durability and reliability.
  • Illuminated Reticle: Electronic illumination aids in low light visibility of reticle. Battery included.
  • MagView Bar: Combines a fiber optics magnification indicator with raised rear-facing magnification references for clear viewing in low light conditions. Patent pending.
  • Radius Bar: Fiber optic turret rotation indicator provides illuminated and tactile point of reference for turret rotations. Patent pending.
  • Fast Focus Eyepiece: Allows quick and easy reticle focusing.
  • Side Parallax: Uses an adjustment mechanism on the left side of the riflescope to fine-tune focus to eliminate parallax shooting error.
  • Sunshade: Reduces glare and sun reflection off the objective lens.
  • Bubble Level: Promotes consistent shooting form for optimal accuracy.

What's in the box:

  • Vortex Optics Razor HD 5-20x50 Riflescope with EBR-2 MRAD Reticle
  • Flip Cap Ocular Lens Cover
  • Flip Cap Objective Lens Cover with killFLASH ARD
  • 4" Sunshade
  • Bubble Level
  • 2mm Hex Wrench
  • CR2032 Battery
  • Vortex Optics Unconditional Lifetime Warranty
