About Vinten V5AS-AP1M

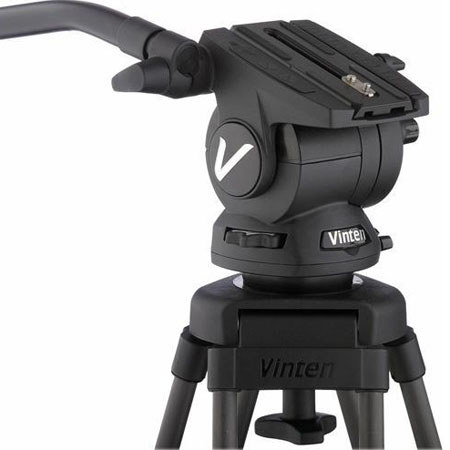

The Vinten V4044-0001 Vision 5AS is a lightweight pan and tilt head that provides total control of camera combinations weighing from 4.5 to 10 kg / 9.9 to 23.1 lbs, making it ideal for supporting the latest generation of professional camcorders & accessories.

This ergonomically designed head is packed full of features including the new Vinten "Sideload" camera attachment system and a high contrast illuminated leveling bubble for rapid set-up, as well as multi-turn counterbalance and drag controls that provide Perfect Balance and silky smooth drag for easy positioning and consistent movement quality. Weighing just 2.8 kg / 6.2 lbs, the Vision 5AS provides smooth, controllable framing, fast whip pan action and rapid set-up.

The Vinten V3822-0001 Pozi-Loc tripod is a precision-engineered single stage, aluminum tripod. It offers a 75mm-bowl and Pozi-Loc leg clamping system. This lightweight, compact tripod is quick and easy to set up and provides excellent operational flexibility.

The revolutionary Spread-Loc is a fully adjustable, geared mid-level spreader, controlled by a single lock knob. In addition, the arms are individually extendable to provide a large spreader radius and facilitate use on uneven ground. The Spread-Loc spreader may be installed on any tripod provided with Spread-Loc attachment points. Fits all Pozi-Loc 75, 100 and 150mm bowl tripods and Torque-Safe ENG tripods.

The Vinten 3334-3 Soft Carrying Case (Blue) is a padded, weather-resistant 600 denier polyester PVC tripod bag made to carry Vinten Vision 3, Vision 6, Vision 8 or Vision 11 single stage tripod systems. It is required for use with the Vinten 3372-3 tripod shipping tube.

Vinten V5AS-AP1M Features

  • Illuminated leveling bubble
  • LF drag system
  • Sideload system for rapid camera attachment
  • Weighs just 2.8 kg / 6.2 lbs
  • Balance: Perfect balance can be achieved with the 5AS because of an multi-turn counterbalance.
  • Aluminum Construction: This tripod is constructed of strong anodized tubular alloy, thermoplastic moldings and die-cast construction, providing the strongest and most durable material for demanding applications.
  • Pozi-Loc Leg Clamps: The Pozi-Loc system is Vinten's innovative cam-operated clamping system. It ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.
  • Clearance: A minimal clearance designed into the mechanical joints keeps the system rigid even when fast panning and tilting are necessary.
  • Durable weather resistant padded tripod case.
  • Pockets: Clear external PVC pocket for document storage
  • Fully zipped internal pockets for pan bars, camera plates and other accessories
  • Touch fastener sealed pocket for operator's guides.
  • Carrying options: Pair of handles positioned to balance the system
  • Lightly padded handle at each end.
  • Lightly padded adjustable shoulder strap
  • Compatible with: Vinten Vision 3, 6, 8 & 11 single stage tripod systems, Vinten single stage tripod with head and spreader up to 39" long

Vinten V5AS-AP1M Specifications

Load Capacity
9.9-23.1 lbs
Maximum Height
63.5" (161.5cm)
Minimum Height
31.8" (81cm)
Folded Length
40.3" (102.5cm)
Leveling Bubble/Illuminated
Yes/Yes Blue
Counter Balance System
Infinitely Adjustable Perfect Balance
Quick Release/Wedge Plate
Tilt Drag
Tilt Range
Tilt Lock
Pan Drag
Pan Range
Pan Lock
Leg Material
Leg Head Attachment Fitting
75mm Bowl
Leg Stages/Sections
Leg Lock Type
Leg Independent Leg Spread
Leg Spiked/Retractable Feet
Leg Center Brace
Floor Spreader
Spreader - Construction
Spreader - Type
Spreader - Adjustable
Spreader - Minimum Length
Spreader - Maximum Length
Spreader - Weight
2.1 lbs
17.7 lbs (8kg)
