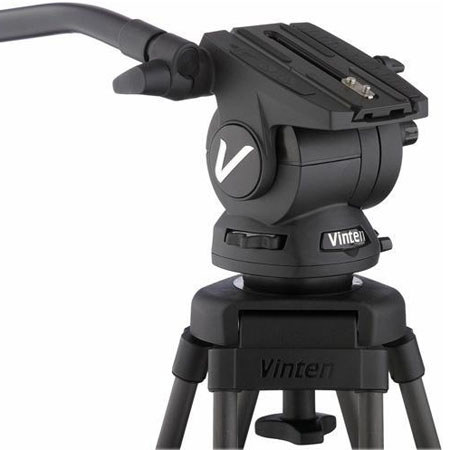

Vinten V5AS-CP2M Vision 5AS Pan and Tilt Fluid Head with Two Stage Carbon Fiber Tripod, Mid-Level Spreader & Soft Case, Supports 23.1 lbs, Black

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,855.00 List Price

Our Price

Free Shipping

Add to Wishlist In Stock

About the Vinten V5AS-CP2M

The Vinten V4044-0001 Vision 5AS is a lightweight pan and tilt head that provides total control of camera combinations weighing from 4.5 to 10 kg / 9.9 to 23.1 lbs, making it ideal for supporting the latest generation of professional camcorders & accessories.

This ergonomically designed head is packed full of features including the new Vinten "Sideload" camera attachment system and a high contrast illuminated leveling bubble for rapid set-up, as well as multi-turn counterbalance and drag controls that provide Perfect Balance and silky smooth drag for easy positioning and consistent movement quality. Weighing just 2.8 kg / 6.2 lbs, the Vision 5AS provides smooth, controllable framing, fast whip pan action and rapid set-up.

Vision ENG tripods are precision-engineered with single or two-stage legs and made of aluminum alloy or carbon fiber material. Offers a 75mm-bowl fixing, attached to an innovative hip joint that eliminates play and gives more rigidity to provide an exceptionally stable camera platform. With unrivalled height range capability and Pozi-Loc leg clamping system, these lightweight, compact tripods are quick and easy to set up and provide excellent operational flexibility.

The revolutionary Spread-Loc is a fully adjustable, geared mid-level spreader, controlled by a single lock knob. In addition, the arms are individually extendable to provide a large spreader radius and facilitate use on uneven ground. The Spread-Loc spreader may be installed on any tripod provided with Spread-Loc attachment points. Fits all Pozi-Loc 75, 100 and 150mm bowl tripods and Torque-Safe ENG tripods.

The Vinten 3358-3 Soft Tripod Case is a padded tripod bag made to carry a Vinten Vision 3, Vision 6, Vision 8, Vision 11 and 2 Stage Tripod Systems. It has interior and exterior pockets for documents and tripod accessories. It has multiple handles and a padded adjustable shoulder strap.

Vinten V5AS-CP2M Includes

  • Vinten Fluid Head
  • Pan Bar
  • Sideload Plate
  • Two Stage Carbon Fiber Tripod
  • Mid-Level Spreader
  • Soft Carrying Case
  • Shoulder Strap
  • Vinten 1 Year Warranty with 2 Years Extended Warranty After Registration

Vinten V5AS-CP2M Features

  • Illuminated leveling bubble
  • LF drag system
  • Sideload system for rapid camera attachment
  • Weighs just 2.8 kg / 6.2 lbs
  • Balance: Perfect balance can be achieved with the 5AS because of an multi-turn counterbalance.
  • Carbon Fiber Construction: Constructed of strong carbon fiber, to provide the sturdiest and most durable material for demanding applications.
  • Smooth Camera Movement: The Vision range of tripods are unique in giving maximum torsional rigidity throughout the height range by combining a "perfect" triangular structure with the most innovative design features.
  • Pozi-Loc Leg Clamps: The new Pozi-Loc is Vinten's innovative cam-operated clamping system, ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked
  • 75mm / 3" bowl base
  • Double extension design
  • Maximum height of 61.5-inch
  • Supports up to 55.1 lb.
  • Spring Loaded Transport Clip, keeps the legs together while in transport
  • Durable weather resistant soft padded tripod bag.
  • Ribbed padded interior
  • Double extra large zip fobs and full length zip for ease of access.
  • Pockets: Large clear external pocket for document storage
  • Fully zipped internal pockets for storage of pan bars, camera plates and other accessories
  • Touch fastener pocket for operation guides.
  • Captive basic head balance instructions.
  • Carrying options: Pair of handles with a touch fastener comfort grip wrap positioned to balance the system.
  • Lightly padded handle at each end.
  • Lightly padded adjustable shoulder strap
  • Compatible with: Vinten Vision 3, Vision 6, Vision 8 or Vision 11 2 stage tripod systems

Vinten V5AS-CP2M Specifications

Load Capacity 9.9-23.1 lbs
Maximum Height 67.5" (172.5cm)
Minimum Height 22.8" (58cm)
Folded Length 34" (86.5cm)
Leveling Bubble/Illuminated Yes/Yes Blue
Counter Balance System Infinitely Adjustable Perfect Balance
Quick Release/Wedge Plate Yes
Tilt Drag Calibrated
Tilt Range +90/-90°
Tilt Lock Yes
Pan Drag Calibrated
Pan Range 360°
Pan Lock Yes
Leg Material Carbon Fiber
Leg Head Attachment Fitting 75mm Bowl
Leg Stages/Sections 2/3
Leg Lock Type Pozi-Loc
Leg Independent Leg Spread Yes
Leg Spiked/Retractable Feet Spiked
Leg Center Brace Mid-Level Spreader
Spreader - Construction Plastic/Rubber
Spreader - Type Mid-Level
Spreader - Adjustable Yes
Spreader - Minimum Length 15.0"
Spreader - Maximum Length 19.7"
Spreader - Weight 2.1 lbs
Weight 17 lbs (7.7kg)
