ViewSonic 22" Widescreen Full HD 1080p LED Monitor, 1000:1 Contrast Ratio, 7ms Response Time, 250 cd/m2 Brightness, HDMI / VGA / DVI-D Connections

ViewSonic VX2270SMH-LED: Picture 1 thumbnail ViewSonic VX2270SMH-LED: Picture 2 thumbnail ViewSonic VX2270SMH-LED: Picture 3 thumbnail ViewSonic VX2270SMH-LED: Picture 4 thumbnail ViewSonic VX2270SMH-LED: Picture 5 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 1 Year Replacement Plan + $19.95
  • New Leaf 3 Year Extended Warranty + $34.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $49.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $74.95

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

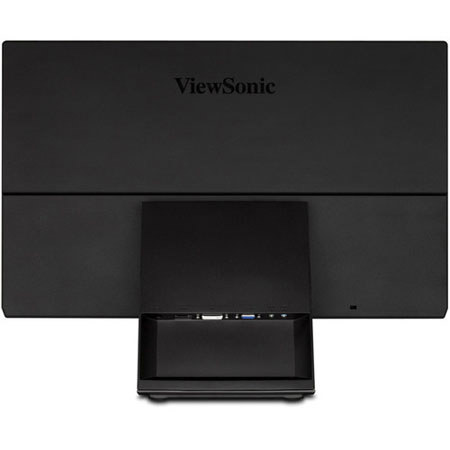

About ViewSonic VX2270SMH-LED

ViewSonic's 22" Widescreen Full HD 1080p LED Monitor is a frameless LED-backlit display with 1920 x 1080 progressive HD resolution, progressive being the better of the two HD types. The monitor is thin and has a stand featuring five basic control buttons. The display is glossy and is equipped with SuperClear IPS technology, which produces more accurate colors, contrast and a wider viewing angle.

Two built-in speakers, by way of SRS Premium Sound, deliver as much a surround sound experience as two speakers can. The monitor is equipped with HDMI, VGA and DVI connections and comes to you with an HDMI cable and a VGA cable included.

ViewSonic VX2270SMH-LED Features

  • Widescreen 1080p Full HD IPS LED Display: The VX2270Smh-LED is a frameless monitor with glossy bezels surrounding the viewable area
  • Full HD 1080p Resolution: The monitor's 1920 x 1080 resolution is capable of displaying a native full HD 1080p image, with "p" standing for "progressive," which is the better of the two HD types
  • IPS: IPS stands for "In-Plane Switching," which is a technology that delivers high accuracy in color and contrast and yields a wide viewing angle, meaning that images will maintain their color and contrast when you move them across the screen or when you change your viewing angle
  • LED monitor: An "LED monitor" refers to a monitor with an LCD panel and an LED backlight. A typical LCD monitor uses CCFL lamps to illuminate the panel. In an LED backlit LCD monitor, white LED lamps are used for light instead
  • sRGB Color Correction: This monitor features embedded sRGB color correction technology, which reproduces color-for-color matches to original input sources. sRGB ensures all displayed images/videos are as natural as the original sources
  • SRS Premium Sound: Designed by SRS Labs, SRS Sound aims at delivering as much a surround sound experience as possible with the monitor's two built-in speakers
  • HDMI / VGA / DVI-D Inputs: Having an HDMI input enables you to directly connect various devices, like cameras, Blu-ray players and some of the newer-model laptops
  • Eco Mode: ViewSonic's proprietary Eco-mode function lets you select between Standard, Optimize and Conserve modes. Standard mode will display images at the monitor's full brightness capacity. Optimize mode dims the brightness some and Conserve mode dims a bit more to save 30-40% on energy costs

ViewSonic VX2270SMH-LED Specifications

21.5" viewable wide color TFT active matrix IPS LED (54.6 cm)
18.7 x 10.5 x 21.5" (47.5 x 26.7 x 54.6 cm)
1920 x 1080
Contrast Ratio
1000:1; 30M:1 Dynamic
Viewing Angles
178deg. horizontal, 178deg. vertical
Response Time
7ms (GTG)
Light Source
WLED with minimum of 30,000 hours of life
250 cd/m2
Panel Surface
Anti-glare, hard-coating (3H)
Video Input
1x VGA 15-pin mini D-sub
1x DVI-D with HDCP
RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
DVI-D (TMDS, 100 ohms)
Fh: 24 - 83 kHz, Fv: 50 - 76 Hz
Separate sync
PC: from VGA up to 1920x1080 non-interlaced
Mac: up to 1920 x 1080
Two built-in speakers
Voltage: AC 100-240 V (universal), 50 / 60 Hz
Consumption: 26 W / 22 W in Optimize mode / 19 w in Conserve mode
Power Save mode: = 1W
Energy Star compliant, EPEAT Silver
Controls 1
Power, 1, Up, Down, 2
On-screen displays:
Auto Image Adjust
Input Select (D-sub, DVI-D, HDMI)
Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B])
Audio Adjust (Volume, Mute, Audio Input)
Controls 2
Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Overscan, ECO-mode)
Setup Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Sleep, Power Indicator)
Memory Recall
Forward 5deg., back 20deg.
CE,CB, BSMI, PSB, SASO, C-tick, UL/cUL, FCC-B (including ICES003), TUV-S, NOM, GOST-R/Hygienic, UkrSEPRO, Erp, CCC, China Energy, ENERGY STAR 5.2, EPEAT Silver, WEEE, RoHS, SVHC list
Operating Conditions
Temperature: 32 to 104deg. F (0 to 40deg. C)
Humidity: 20-90% (non-condensing)
With stand: 19.7x15.4x7.1" / 50.03x39.11x18.03 cm
With stand: 7.9 lbs / 3.58 kg
