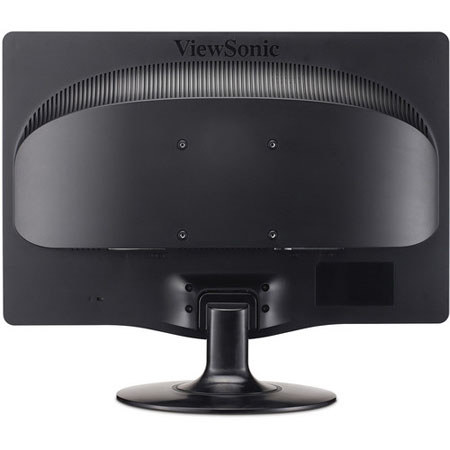

ViewSonic VA2232wm-LED 22" Widescreen LCD Computer Display, 1680 x 1050 Resolution, 16:10 Aspect Ratio, 5.0 ms Response Time, 15-Pin Mini D-Sub (VGA)

ViewSonic VA2232wm-LED: Picture 1 thumbnail ViewSonic VA2232wm-LED: Picture 2 thumbnail ViewSonic VA2232wm-LED: Picture 3 thumbnail ViewSonic VA2232wm-LED: Picture 4 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 1 Year Replacement Plan + $19.95
  • New Leaf 3 Year Extended Warranty + $34.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $49.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $74.95

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • Comfortable Viewing Quality
  • Impressive 10,000,000
  • LED Backlight Technology
  • Energy Savings in Eco-Mode
  • sRGB Color Calibration
  • 20" to 29" Computer Monitors
  • 1680 x1050 Resolution
  • VGA Connection

About ViewSonic VA2232wm-LED

The ViewSonic VA2232wm-LED 22" Widescreen LCD Computer Display is a high definition monitor with an optimal resolution of 1680 x 1050. Its screen has a 16:10 aspect ratio and a sRGB color calibration function. Thanks to its white-LED backlighting and mercury-free components, this ViewSonic monitor is ENERGY STAR 5.0-certified and is eco-friendly. LED backlighting doesn't only save up to 50% of energy, but it also contributes to a dynamic contrast ratio of 10,000,000:1 and a brightness rating of 300cd/m2. The 5ms video response time ensures that digital HD video content have optimal image quality. An anti-glare finish on the screen prevents strong and harsh lights from ruining the viewing experience.

This ViewSonic monitor also comes with built-in 2W speakers to provide excellent audio as well as a 3.5mm audio jack for connecting external speakers or headphones. The 170deg./160deg. viewing angles as well as the ability to use a 100mm x 100mm VESA mount allow for comfortable placement. A number of ViewSonic-exclusive technologies add functionality to the display. Automatic aspect ratio adjustment ensures that the 4:3 content is displayed correctly without distorted or stretched images. The OSD/power lock feature secures custom settings to prevent changes and maintain a high-quality video output.

ViewSonic VA2232wm-LED Features

  • Comfortable Viewing Quality: A 1680 x 1050 resolution supports premium viewing quality through a screen with a 16:10 aspect ratio. Enjoy clear and vivid images in your home or office without having to deal with eye fatigue
  • Impressive 10,000,000:1 Dynamic Contrast Ratio: Dynamic contrast ratio automatically detects the brightness of an image and adjusts this ViewSonic monitor's backlighting accordingly
  • LED Backlight Technology: With LED backlighting, this ViewSonic monitor enhances display performance with a wide color range and high dynamic contrast ratio. Also, LED backlighting technology conserves up to 25% more energy than conventional CCFl-backlit displays
  • Energy Savings in Eco-Mode: This ViewSonic monitor comes with ViewSonic's proprietary Eco-mode function. Select either the "Optimize" or "Conserve" options to reduce display brightness and save up to 35% energy
  • sRGB Color Calibration: Accurate and consistent color performance is essential for professionals in graphic design, video editing and other professional fields dealing with images or videos

ViewSonic VA2232wm-LED Specifications

Wide Color TFT Active Matrix LCD
Viewable Size
Contrast Ratio
1000:1 static (10,000,000:1 dynamic)
Viewing Angle
170deg. horizontal, 160deg. vertical
Pixel Dot Pitch
0.282mm horizontal, 0.282 vertical
Response Time
Panel Life
50,000 hours (typical)
Colors Supported
Up to 16.7 million
Internal Interface
Horizontal: 24-82kHz
Vertical: 50-85Hz
Sync Type
TTL separated sync
1680 x 1050 (optimum)
1 x VGA
1 x DVI-D
Audio Input
1 x 1/8" (3.5mm) audio jack
Hub Ports
2 x built-in 2W speakers
VESA (100 x 100mm)
Power, Down, Up, 1, 2
On-Screen Display
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI), Audio adjust (Volume mute), Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Eco-mode), Setup Menu(Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off), Memory Recall
Auto Configuration
Touch Screen
Tilt/Swivel Range
Tilt: Down 5deg. Up 20deg.
Swivel: No
Height: No
Pivot: No
Kensington lock slot
Compliant Standards
UL / cUL, FCC-B (including ICES003), CE, CB, TUV-S, NOM, BSMI, PSB, Energy Star, EPEAT Silver, RoHS
System Requirements
Computer with VGA or DVI-D output
Power Requirements
AC: 100-240V, 50/60Hz
Consumption: 25W (typical), 18W (optimized), 14W (conserved)
Environmental Requirements
Operating Temperature: 32-104deg.F / 0-40deg.C
Humidity: 10-90% (non-condensing)
Dimensions (WxHxD)
With Stand: 20.1x16.4x7.7" / 510.54x416.56x195.58mm
Without Stand: 20.1x13.9x2.41" / 510.54x353.06x61.21mm
With Stand: 8.6lbs / 3.90kg
Without Stand: 7.8lbs / 3.54kg
Mfr #
