Vixen SXD2 Equatorial Mount with Tripod

SKU: VX25061H30 MFR: 25061HAL130

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $4,480.00

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Vixen SXD2: Picture 1 regular $2,699.99

About Vixen SXD2

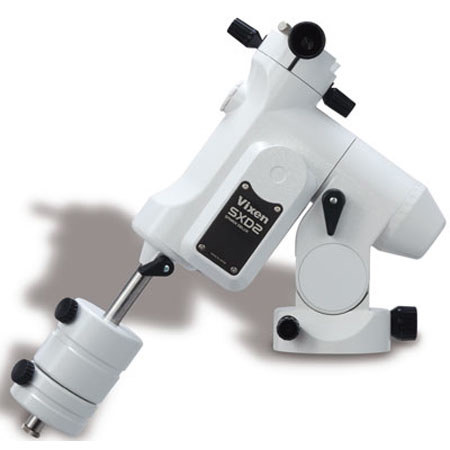

The Vixen Optics SXD2 Equatorial Mount with Tripod has a greater loading capacity and is more rigid enabling a more steady platform for astrophotography. The quieter Stepping motors ensure you of smooth, quiet slewing with quick response to commands. The new Star Book Ten features an intuitive Star Chart Go-To System on a high definition LCD Screen. Features include night vision screen, hibernate mode, VPEC and PPEC and optional built-in autoguider.

Increased Loading Capacity: Both the RA and DEC Axes are made of sturdy steel with brass wheel gears. This enables the mount to carry loads of up to 50 lbs (including counterweights) for astrophotography.

Smooth RA and DEC Movement: The inside of the new SXD2 is very different from the previous SX Mounts. Bearings have been added to the shafts of t he RA and DEC axes and the screw gear shafts. The worm screw gears are inspected for strict concentricity and are lapped in the whole-circle for smooth movement.

Vixen SXD2 Specifications

RA Slow Motion
Worm and Wheel Gears 180 Tooth whole circle movement
DEC Slow Motion
Worm and Wheel Gears 180 Tooth whole circle movement
RA Display
On screen STAR BOOK TEN, 0.1 minute increments
DEC Display
On screen STAR BOOK TEN, 0.1 arc minute increments
Polar Axis Scope
SX Polar Axis Scope (pre-installed)
Altitude Adjustment
0 to 70deg., separated by 3 zones for fine adjustment w/ tangent screws (+- 15deg.)
Go-To Controller
STAR BOOK TEN, 1200x max slewing speed
Power Source
DC12V, 0.4 to 1.7A
Power Connecting Terminal
DC12V EIAJ RC5320A Class 4
36x36x12cm / 14.17x14.17x4.72"
19.3lbs / 8.75kg (excluding counterweights)
