Vixen ED115S, 115mm, 4.5", Refractor Optic...
Vixen

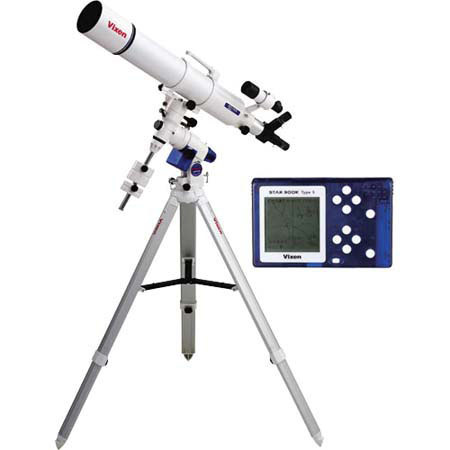

Vixen ED115S, 115mm, 4.5", Refractor Optical Tube with GPD2 Mount, HAL130 Tripod, Star Book S, NLV 25mm Eyepeice.

SKU: VXED115SGPDS MFR: 99802
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$4,599.00
Free shipping
Qty:

Add to Wishlist

About this item

The Vixen ED 115S lens focuses the full spectrum of visible light to a critical point much more accurately than past ED products. The ED115S lenses are almost free of chromatic aberration in all colors and are critically sharp edge to edge. The astro-photographer will be especially pleased with the high contrast images through this telescope.

The ED115S comes complete with 7 x 50mm finder, finder bracket, 2" eyepiece adapter and dual T-thread flip-mirror with dual 1-1/4" eyepiece adapters, 125mm tube rings, carry handle, dovetail tube plate and metal carry case. The package includes 2 eyepieces. The GPD2 equatorial mount is the stronger and heftier of the GP mounts. With it's solid steel R. A. and Declination axes and brass worm gears this mount will hold up to years of heavy use.

In order to assure accurate tracking for astrophotography the worm, gears are especially machined to a very high precision that minimizes periodic error. Add the new Vixen Starbook S with built in starchart for complete Go-To capabilities. The GPD2 holds almost 50% more weight than the GP2 and comes standard with tripod and counterweight.

It is easy to use and functions well for both the visual observer and astrophotography. Motion is controlled by included control knobs for accurate slewing. The polar altitude adjustment varies from 0° to 62° in altitude. Optional single axis or dual axis motors and controllers are available as is a polar alignment telescope and setting circles.

What's Included With This Item

  • Vixen ED115S Optical Tube
  • GPD2 Mount
  • HAL130 Tripod
  • Counterweight
  • Star Book S
  • 7 x 50mm Finder
  • Finder Bracket
  • 2" Eyepiece Adapter
  • Dual T-thread Flip-Mirror
  • Dual 1-1/4" Eyepiece Adapters
  • 125mm Tube Rings
  • Carry Handle
  • Dovetail Tube Plate
  • Metal Carry Case
  • NLV 25 Eyepiece
  • Vixen Warranty

Key Features

  • The ED115S is a large 4-1/2" APO and offers high contrast viewing of solar system and the deep sky
  • The ED115S apochromatic refractor features Extra-Low Dispersion (ED) glass in its objective lens to suppress chromatic aberration to a virtually invisible level
  • The Vixen Great Polaris 2 Deluxe Mount is made of die-cast aluminum for strength and minimum weight and has a weight capacity of 30 lbs.
  • The Vixen Starbook S, with it's GoTo functions and interactive star chart, combines the fun of interactive video games with the latest in telescope electronics to give you a rich experience

Technical Specs

ED115S Type Refractor
ED115S Objective Diameter 4.5" (115mm)
ED115S Focal Length 35" (890mm)
ED115S Focal Ratio f/7.7
ED115S Tube Length 3.7" (940mm)
ED115S Tube Diameter 4.9" (125mm)
ED115S Tube Weight 9.7 lbs (4.4kg)
ED115S Finder/Visual/Mounting 7 x 50mm; 2" holder, 1-1/4" flip mirror w/T-threads; tube rings/dovetail plate
ED115S Backfocus 5.9" (150mm)
ED115S Backfocus with focal reducer 3.9" (98.2mm)
GP-D2 R.A. Micro-Movement Axis Whole Circle Movement 144-Tooth Worm Gears
GP-D2 Declination Micro-Movement Axis Whole Circle Movement 144-Tooth Worm Gears
GP-D2 R.A. & Declination Circles Supplied, R.A. Graduation is 10' increment, Declination Graduation is 2-degree increment
GP-D2 Optional Polar Axis Scope For Northern & Southern Hemispheres. 6 X 20mm 8-degree detachable, with illuminator, 3' polar alignment accuracy possible
GP-D2 Azimuth Fine Adjustment Adjustment Knobs
GP-D2 Polar Axis Altitude Adjustment 0-62 degree adjustment knobs
GP-D2 Bubble Level Supplied
GP-D2 Maximum Load Weight Approximately 30 lbs
Warranty Vixen warranty
