Made in USA

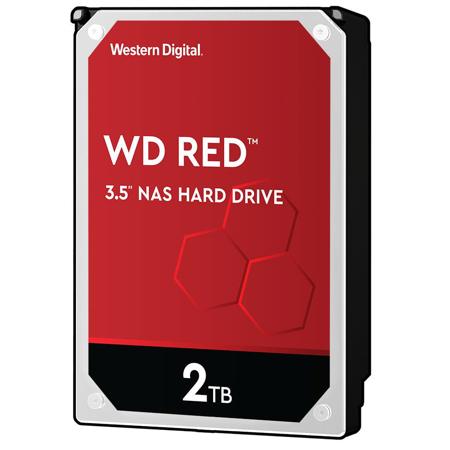

WD 20EFRX Red 2TB 3.5" SATA Hard Drive for NAS with IntelliPower 6Gb/s 64MB Cache

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships in 1-2 Days

Free Shipping

See all shipping options

WD WD20EFRX: Picture 1 regular $96.99


The WD WD20EFRX Red 2TB NAS hard drive is designed and tested for compatibility in the unique 24x7 operating environment and demanding system requirements of home and small office Network Attached Storage (NAS). Built in NASware optimizes power use resulting in significant power savings and lower hard drive operating temperatures. This improves the overall reliability and performance of the drive and reduces the NAS of ownership.

WD WD20EFRX Features

  • Compatibility: Desktop hard drive is not always tested for compatibility in NAS and can present problems during integration
  • Reliability: Most desktop drive is not designed for the high operating temperatures or for 24x7 operating environments making them less reliable when used in a NAS system
  • Error recovery controls: Desktop drive is not traditionally designed for RAID environments and have controls that prevent the RAID controller from assisting in the event of an error which can cause the hard drive to drop off the RAID after a period of time
  • Noise and vibration: Typically designed for single drive applications, average desktop drive is not optimized for multi-drive systems which have higher noise and vibration levels. When these drives are added to a NAS, the additional vibration can reduce the reliability and life span of the drive
  • Enhanced reliability: Your NAS systems is always on, a highly reliable drive is essential. With a 35% MTBF improvement over standard desktop drives, this WD WD20EFRX Red drive is designed and manufactured to be a more reliable and robust solution
  • Energy efficient: Reduce your electricity bill and carbon footprint with the WD WD20EFRX Red drive. Innovative technology reduces power consumption and lowers the operating temperature, resulting in a more reliable and affordable solution for always on 24x7 NAS environments

WD WD20EFRX Specifications

SATA 6 Gb/s
Rotational Speed
Buffer Size
64 MB
Transfer Rates
Buffer To Host (Serial ATA) 6 Gb/s (Max)
Formatted Capacity
2,000,592 MB
User Sectors Per Drive
Target Performance
MTBF 1,000,000 hours
Hard Drive Holds
Up to 300,000 digital photos
Up to 500,500 songs (MP3)
Up to 300,000 songs (uncompressed CD quality)
Up to 30 hours of Digital Video (DV)
Up to 180 hours of DVD quality video
Up to 15 hours of HD video
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 250G, 2 ms
Idle Mode23 dBA (average)
Seek Mode 024 dBA (average)
Operating 32deg. F to 158deg. F
Non-operating -40deg. F to 158deg. F
Operating 5-95% RH non-condensing
Operating 0.004 gÂ/Hz (10 to 300 Hz)
Non-operating 0.05 gÂ/Hz (10 to 300 Hz)
Linear 20-300 Hz, 0.75G (0 to peak)
12 VDC: 250 mA
5 VDC: 280 mA
Power Dissipation: 4.40 Watts
12 VDC: 230 mA
5 VDC: 260 mA
Power Dissipation: 4.10 Watts
12 VDC: 7 mA
5 VDC: 105 mA
Power Dissipation: 0.60 Watts
12 VDC: 7 mA
5 VDC: 105 mA
Power Dissipation: 0.60 Watts
Dimensions (H x D x W)
1.028 x 5.787 x 4" (2.611 x 14.69 x 10.16 cm)
1.40 lbs (0.63 kg)
Mfr #

WD WD20EFRX Reviews Powered by TurnTo®

Reviewed by 2 customers


The right tool for the right job.


This is the perfect product for heavy data users that can't afford enterprise grade HDDs, such as the WD RE4. It has a range of features that make it better suited than any other consumer HDD for RAID arrays or ZFS pools, especially for multi-user network environments. I'm replacing several aging WD Greens with these WD Reds.

(2 of 2 customers found this review helpful)


Product good but Adorama service bad


Well, the hard disks were excellent. very quiet... But what I can say about Adorama shipping quality. I bought 2 hard disks which were wrapped in a thin non static plastic and thrown in a box along with 1 piece of void fill air pouch. The hardisks were free to move inside the box.The hard disks are working as of now but I have no idea how this has damaged the magnetic disks and heads affecting the life of product.
