WD Scorpio Blue Specifications

  • Capacity

    500GB

  • Interface

    SATA 3 Gb/s

  • User sectors per drive

    976,773,168

  • Master/slave support

    Yes

  • Form factor

    2.5-inch

  • RoHS compliant

    Yes

  • Data transfer rate (max)

    Buffer to host: 3 Gb/s
    Host to/from drive (sustained): 136 MB/s

  • Cache (MB)

    8

  • Average latency (ms)

    5.5

  • Rotational speed (RPM)

    5400

  • Average drive ready time (sec)

    4

  • Load/unload cycles

    600,000

  • Non-recoverable read errors

    <1 in 1014 (per bits read)

  • Power Management (5VDC ±10% (A, peak))

    0.95

  • Average power requirements (W)

    Read/Write: 1.6
    Idle: 0.65
    Standby/Sleep: 0.20

  • Operating Temperature (Deg.C)

    0 to 60

  • Non-operating Temperature (Deg.C)

    -40 to 65

  • Shock (Gs)

    Operating (2 ms, read): 350
    Non-operating: 1000 (2 ms)

  • Acoustics (dBA)

    Idle: 22
    Seek (average): 25

  • Dimensions (H x L x W)

    0.37 x 3.94 x 2.75 in/9.50 x 100.2 x 69.85 mm

  • Weight

    0.22 lbs/0.10 kg

  • UPC Code

    718037763255

1 Accessories for WD Scorpio Blue 500GB 2.5" Internal Hard Drive, 5400 RPM Speed, 3Gb/s SATA Interface

  • All Accessories (1)
  • Cleaning Accessories (1)

About WD Scorpio Blue

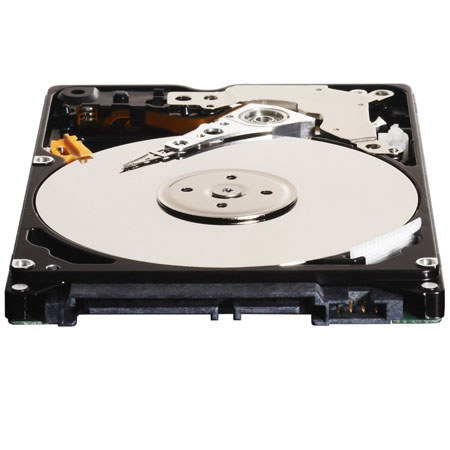

WD Scorpio Blue 500GB 2.5" Internal Hard Drive delivers lightning-fast and ultra-quiet performance hand-in-hand with low power consumption. In addition, hard drive is designed with ruggedness, reliability and data-protection features that actively watch over valuable data. The drive features a 3 Gb/s SATA interface and 8 MB cache. WD Scorpio Blue hard drive is designed for portable digital devices of all kinds, including notebook computers, external storage and digital media players.

WD Scorpio Blue Features

  • Quiet: In a notebook drive, silence is golden. WD's exclusive WhisperDrive combines state-of the- art seeking algorithms to yield one of the quietest 2.5-inch hard drives. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption
  • Reliable: WD's SecurePark parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear and improved nonoperational shock tolerance
  • Rugged: WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks
  • Tested for compatibility: It is tests on hundreds of systems and a multitude of platforms in the FIT Lab and Mobile Compatibility Lab to give the customers confidence that the drives will work in their systems
