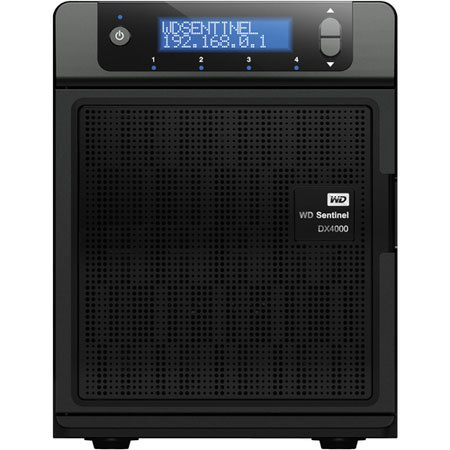

WD 12TB Sentinel DX4000 Small Office Storage Server, 2 x Gigabit Ethernet and USB 3.0 Interface

SKU: WDSDX4TSO12T

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

WD WDBLGT0120KBK-NESN Specifications

  • Capacity

    12TB: 4 x 3.0TB

  • Array Type

    Hot-swappable

  • Bays

    4

  • Drive Types Supported

    3.5" SATA II

  • RAID Levels

    RAID 1 (2 drives only) and RAID 5 (3-4 drives)
    Automatic migration and capacity expansion

  • Desktop/Rackmount

    Desktop

  • Status Indicator

    LCD display

  • Supported Web Browsers

    Internet Explorer
    Apple Safari
    Mozilla Firefox
    Google Chrome

  • Network Authentication

    Active Directory

  • Network protocols

    CIFS, NFS, HTTP, HTTPS, FTP, WebDAV

  • Connectivity

    2 Gigabit Ethernet ports
    2 USB 3.0 ports

  • File Sharing Protocols

    CIFS/SMB, NFS, FTP, WebDAV

  • Input and Output Connectors

    2x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
    2x USB 3.0

  • System Compatibility

    Mac, Windows, Linux, UNIX

  • Compatibility

    Ethernet network

  • CPU

    Intel Atom D525 1.8 GHz Dual Core
    2GB RAM

  • Server Operating System

    Windows Storage Server 2008 R2 Essentials

  • System Requirements

    Windows XP with service pack 3, 32-bit versions only
    Windows Vista with service pack 2, all 32-bit and 64-bit platforms
    Windows 7, all 32-bit and 64-bit platforms
    Mac OS X 10.5.x or higher
    Linux OS
    UNIX OS

  • Electrical Requirements

    AC: 100-240 VAC, 50 / 60 Hz

  • Operating temperature

    41 to 95deg.F / 5.0 to 35deg.C

  • Storage temperature

    -40 to 149deg.F / -40 to 65deg.C

  • Dimensions (H x W x D)

    8.1 x 6.3 x 8.8" (20.6 x 16 x 22.4 cm)

  • Weight

    14 lbs (6.35 kg)

  • UPC Code

    718037779812

About WD WDBLGT0120KBK-NESN

The WD 12 TB Sentinel DX4000 Small Office Storage Server is a reliable, manageable, high-performance solution for storing your data and keeping it available on your network. With a capacity of 12 TB, configured as 4 x 3.0 TB, the Sentinel saves your data on Enterprise-class RE (RAID Edition) hard drives and can configure that data in a RAID 1 or 5 configuration (pre-configured as RAID 5). In addition, it also supports hot-swapping when you want to expand drives and can migrate your data to the appropriate RAID level. The Sentinel features dual Gigabit Ethernet connections.

Whether you're an IT expert or a novice, the plug-and-play WD Sentinel is simple to install and offers secure centralized storage, complete data protection and remote file access for your employees and trusted vendors from the office or anywhere - without the complexity and cost of a VPN solution. Once it's set up, the Sentinel intelligently manages drive and network status, cutting down on maintenance time and allowing you to focus on your business. Use this storage solution for your PC desktop or laptop or your Mac laptop.

WD WDBLGT0120KBK-NESN Features

  • Plug-and-play Installation: The simple setup process enables you to integrate WD Sentinel into your office network like a pro. The administration dashboard speedily guides you through the process, from adding users and setting up user access to creating public or private shares & scheduling backups
  • Easy Maintenance: Replacing one of the pre-installed drives is as simple as changing a light bulb! All you need do is open the door and switch out the drives
  • Comprehensive Data Protection: Pre-configured with WD's enterprise-class drives for great durability and reliability. Features RAID (Redundant Array of Independent Disks) configurations 1/5 for superior data protection and speed - Pre-configured as RAID 5
  • Secure Remote Access: What's more is that WD Sentinel performs automatic daily backups so that all files on all computers in your network are backed up and protected. The Sentinel is perfect for creating a secure small office network for as many as 25 computers
  • Speedy: With its dual Gigabit Ethernet connectivity, WD Sentinel DX4000 provides read speeds up to 85 Mbps - that's 3x faster than most network drives in the category today!
  • Hardware and Software for Reliable, Secure and Manageable Storage: Hard Drives: Equipped with WD's enterprise class RAID Edition hard drives: 4 x 3.0 TB, featuring WD GreenPower Technology for low power consumption, cool, quiet operation and reliable performance
  • LCD Display Panel: The LCD display panel located on the front of the device enables you to monitor system status and critical alerts
  • Real-time System Status via Dashboard: View real-time updates for drive, RAID and network status via WD Sentinel's dashboard, which includes simple task wizards to aid you in setting backup schedules, administering user accounts and managing public and private shares
  • Compatible with Multiple Operating Systems: Provides connector software support for Windows XP, Windows Vista and Windows 7. Compatible with Mac OS X Leopard and Snow Leopard. Cross-platform compatibility allows file sharing among Windows, Mac and Unix/Linux operating systems
  • Stream Digital Media Anywhere in Your Network: Thanks to the built-in DLNA server, your employees are able to access any shared media libraries on the network, instead of maintaining copies on their individual computers

What's in the box:

  • WD 12TB Sentinel DX4000 Small Office Storage Server
  • RJ45 Ethernet Cable
  • AC Adaptor with Power Cord
  • Quick Install Guide
  • WD Warranty
