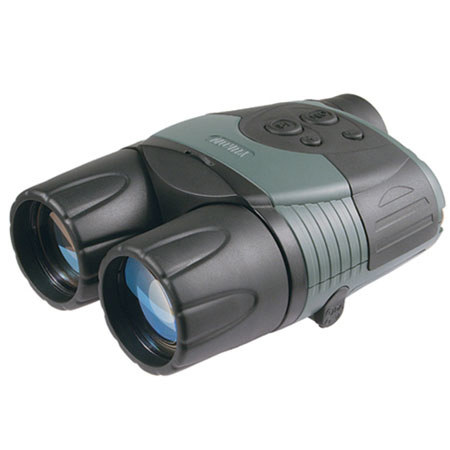

Yukon Advanced Optics Digital Ranger 5x42 Digital Night Vision Monocular, Gen 1, CCD Sensor, IR Illumination, Video Recording

SKU: YK28041 MFR: YK28041
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$419.99 List Price

Our Price

$324.95 $13 per week
Free Expedited Shipping
Add to Wishlist

About this item

Yukon ranger 5x42 is a fundamentally new night vision device with a number of unique advantageous features that came as a result of modern optical and digital technologies. Being quite different from the Gen.1 devices, Ranger 5x42 can surely compete with the Gen.2 in image sharpness and brightness. The device's IR-illuminator operates in the remote field of the IR-range (940nm), invisible by the unaided eye and has a gradual power intensity adjustment function and memorization of a fixed emanation level.

Ranger 5x42 is fully self-contained (powered with six AA batteries) but can also operate on external sources. With the adjustment wheel on the front panel one can choose the suitable brightness level of the display. For image broadcasting to the screen and video recording the device is equipped with a video out. For stationary prolonged observation and video recording it is advisable to mount the device on a standard tripod that uses 1/4" mounting thread.

The Ranger is equipped with two independent built-in IR illuminators. One of them functions continuously and is designed for observation under ideal night viewing conditions of a 1/4 moon. The other high-powered IR illuminator is intended for observation of distant objects under low light conditions, including total darkness. The IR power of the latter can be smoothly adjusted and the IR light intensity level can be stored.

The 42mm objective lens is distinguished by improved frequency and contrast characteristics. The objective lens made of high-quality optical glass is fully multicoated.

The direct built-in video recording output enables image transmission as well as video recording on peripheral equipment (monitor etc.) while carrying out stationary or mobile observations.

The Ranger can operate on external power sources such as vehicle's or stationary power grid (the device is equipped with a special output for that) or independently on AA batteries/accumulators.

In Ranger the image is shown on the Liquid Crystal Display (LCD). Manual adjustment of LCD brightness is operated with the adjustment wheel.

What's Included With This Item

  • Yukon Digital NV Ranger 5x42
  • Carrying Case
  • Neck Strap
  • Cleaning Cloth
  • User's Manual
  • Yukon 1 Year Warranty

Key Features

  • Stealthy operation with invisible IR illuminator
  • Direct video recording output
  • Higher magnification for better detail
  • Improved resolution vs. starlight NV in the same category
  • Image brightness comparable with Gen2
  • Dual IR system
  • The device cannot be damaged due to long-term exposure of bright lights
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Technical Specs

Magnification 5x
Lens Diameter 42mm
Resolution Lines 40
Field of View 5 degree
Diopter Adjustment +/-4
IR Wavelength 940nm
IR Power 2000mW
Power Supply DC 6-12V 1000mA
Video Output Signal Standard CCIR (PAL compatible) / EIA (NTSC compatible)
Camera Resolution 500x582 / 510x492
Range of Detection 250m (820.2')
Battery 6x AA
Operation Voltage 7.2-9 V
Operating Temperature -4 to 95°F (-20 to +35°C)
Battery Life with IR 5 hrs
Battery Life without IR 12 hrs
Dimensions 6.7 x 4.6 x 3" (170 x 116 x 76mm)
Weight 1.4 lbs (0.65kg)
