21% Off

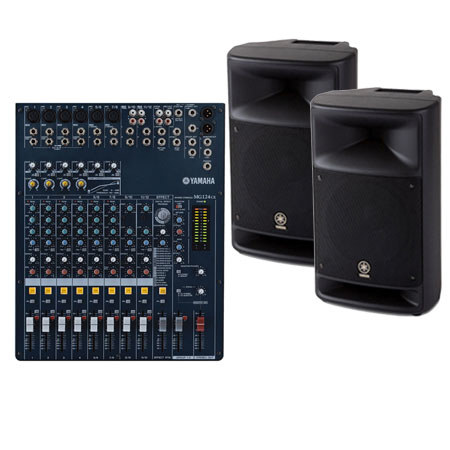

Yamaha MG124CX/MSR250 Bundle, Includes MG124CX Mixer, 2x MSR250 10" 2-Way Loudspeaker


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $1,299.00

Availability: On Backorder On Backorder - This item is currently back-ordered by the manunufacturer. Although we have no estimated time of arrival of this item, you can order it now and it will ship as soon it arrives. Your card will only be charged once item is shipped.

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • 12 line inputs via 1/4" TRS balanced phone connections
  • Up to 16 effects presets including reverb included
  • Built-in compressor on all mono channels
  • 4 Input channels for connecting devices or keyboards
  • 6 high quality mic inputs via balanced XLR connections
  • 1/4" TRS phone connections on every mic input
  • Stereo bus output features pair of 1/4" TRS phone outputs
  • 3-band EQ w sweepable mid-range & high pass filter

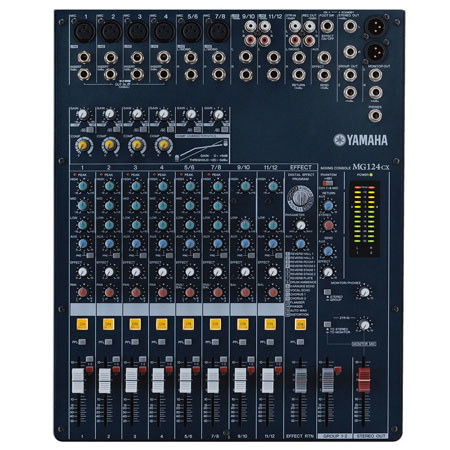

Yamaha MG124CX/MSR250: Picture 1 regular $1,029.99

About Yamaha MG124CX/MSR250

The Yamaha MG124 CX is a versatile compact audio mixer designed for both project studio and live sound applications. The mixer features 12 total input channels with 1/4" TRS phone inputs on all channels and six XLR microphone inputs. Channels 1 through 4 are mono while 5/6, 7/8, 9/10 and 11/12 feature stereo paired 1/4" TRS phone inputs for connecting stereo devices such as keyboards, recorders etc. An internal effects processor provides up to 16 user selectable presets including reverb, delay, chorus, flanger, distortion and more. In addition, a built-in compressor is available on all mono channels for vocals, instruments, etc.

The MG124 CX provides plenty of routing possibilities with 1/4" TRS inserts on all mono channels. Inserts send signal to external signal processors and effects and allow the signal to be returned to the original channel. The stereo outputs can be grouped with the provided stereo group bus for a total of 4 output buses. Three-band EQ sections provide high pass filter and sweepable mid-range. All microphone inputs are capable of providing +48V phantom power. The MG124 CX is a suitable solution for project recording studios, video editing facilities and live sound reinforcement.

The MSR250 Loudspeaker from Yamaha features a unique cabinet geometry that eliminates standing waves within the cabinet. The unit also features acoustic insulation to deaden the space within the enclosure. It includes an advanced ferrofluid in the voice coil gap that conducts heat away from the voice coil. The conduction thereby reduces heat within the speaker and allows for more natural frequency response and dynamics, as well as stable performance under heavy use.
br>This unit features a class D amplifier that delivers 250W of power via a 10" cone woofer and 1" titanium-dome compression driver. It also includes a 2.5" aluminum coil. It offers frequency response from 55Hz to 20kHz. Dual input channels allow you to link to other systems and audio devices, or expand your system. The speaker also includes a pole-mount receptacle, allowing for multiple installation possibilities.

Yamaha MG124CX/MSR250 Features

  • MG124CX: 12 Inputs: The MG124 CX features a total of 12 line inputs via 1/4" TRS balanced Phone connections
  • MG124CX: Internal Effects: Up to 16 effects presets including reverb, chorus, flange and delay are included
  • MG124CX: Built-in Compressor: A built-in compressor is featured on all mono channels for controlling vocal and instrument dynamics
  • MG124CX: 4 Stereo Inputs: Input channels 5/6, 7/8, 9/10 and 11/12 are stereo paired for inputs, suitable for connecting playback devices or keyboards
  • MG124CX: High Quality Microphone Inputs: Six Microphone inputs feature high quality mic inputs via balanced XLR connections. The inputs are capable of +48V phantom power
  • MG124CX: Inserts: 1/4" TRS phone connections are found on every microphone input allowing flexible signal routing to external processors
  • MG124CX: 4 Output Buses: A Stereo Group bus output features a pair of 1/4" TRS phone outputs. The MG12/4 features a total of 4 buses when using stereo group and main stereo outputs simultaneously
  • MG124CX: Sweepable EQ Section: All mono channels feature a 3-band EQ with sweepable mid-range and high pass filter
  • MSR250: Multi-Purpose Loudspeaker: This loudspeaker can be used in portable or permanent installations to fill a wide range of applications
  • MSR250: Sound Dynamics: Advanced geometry and acoustic dampening help deaden sound in the cabinet and enhance the sound produced by this unit
  • MSR250: Cooling: A conductive ferrorfluid system in the voice coil gap keeps the speaker cool and performing at optimum levels

Yamaha MG124CX/MSR250 Specifications

MG124CX: Total No of Inputs
12 - Total Inputs
MG124CX: Mic/Line Inputs
6 - Mic Inputs: Balanced 3-pin XLR
12 - Line Inputs: Balanced 1/4" TRS Phone
MG124CX: Stereo Line Inputs
4 - Stereo Line Inputs: (L/R) Balanced 1/4" TRS Phone, channels 5/6, 7/8, 9/10, 11/12
channels 9/10 & 11/12 feature both TRS Phone and RCA Phono connections
MG124CX: In-Line Inputs/Returns
MG124CX: AUX Sends
1 - L/R Stereo 1/4" TRS Phone connections
MG124CX: AUX Returns
Aux are returnable via stereo input channels
MG124CX: Inserts
1/4" TRS Phone all mono channels
MG124CX: BUS (Group) Outputs
Stereo Group Bus: (2) 1/4" TRS Phone
4 Bus output when used in conjunction with main stereo output
MG124CX: Main Outputs
Stereo Outputs: L/R 1/4" TRS Phone & L/R XLR 3-pin balanced
REC Outputs: L/R RCA Outputs
MG124CX: Monitor Outputs
C/R Outputs: L/R 1/4" TRS Phone
MG124CX: EQ Section
CH & ST High Pass Filter: 80Hz 12dB/octave
Mono Channel EQ -15dB (max.):High: 10kHz (shelving)
Mid: 2.5kHz (peaking)
Low: 100Hz (shelving)
Stereo Channel EQ -15dB (max.):
High: 10kHz (shelving)
Mid: 2.5kHz (peaking)
Low: 100Hz (shelving)
MG124CX: Solo/Mute
Mute & PFL Solo - all input channels
MG124CX: Channel Level Control
MG124CX: Trim/Gain Control
Sealed Rotary Potentiometers (POTS) Gain Range:
CH IN MIC: -60 to -16, 3k ohms actual
CH IN LINE: -34 to 10, 10k ohms actual
ST CH MIC: -60 to -16, 3k ohms actual
ST CH LINE: -34 to 10, 10k ohms actual
MG124CX: Phantom Power
MG124CX: Metering
Stereo Peak LED
MG124CX: Frequency Response
20 - 20kHz at +4dB 600ohms (ST Out)
MG124CX: Signal-to-Noise Ratio
MG124CX: Total Harmonic Distortion (THD)
Less than 0.1% (THD+N) <20Hz - 20kHz at +14dB 600 ohms (ST OUT)
MG124CX: Power Supply
27W 120 V/60 Hz
MSR250: Frequency Response
55Hz to 20kHz
MSR250: Power Capacity
250W Max
MSR250: Maximum Sound Pressure Level
MSR250: Low Frequency Driver
10" cone woofer
MSR250: High Frequency Driver
1" titanium-dome compression driver
MSR250: Enclosure Material
MSR250: Input Connections
Input 1: XLR/Phone (balanced) Input 2/3: Phone/RCA-pin (unbalanced)
Dimensions (WxDxH)
12.50x16.40x4.09" (317.50x416.56x103.87mm)
MSR250: 13.5x21.5x11.75" (343x546x298mm)
11.02 lbs / 4.99kg
MSR250: 31.1 lbs (14.1kg)
Mfr #
