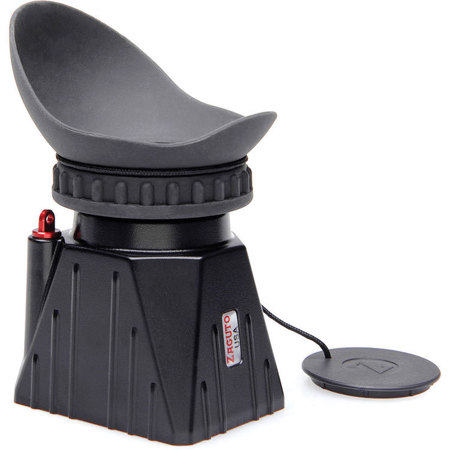

Zacuto Z-Find-Jr Optical Viewfinder
What's Included With This Item:
- Zacuto Z-Find-Jr Optical Viewfinder
- 2 Extender Frames
- Z-Finder JR. Mounting Bracket
- Lanyard and Lanyard Hook
- Lens Cap
- Zacuto Warranty
The Z-Finder Jr. is one of Zacuto's Optical Viewfinders that allows DSLR cameras to have the correct form factor for video. It offers 2.5x focusable magnification, a 40mm diameter Zacuto optical designed lens, an eyecup preventing extraneous light leakage and a field of view perfectly matched to 3" LCD screens. The Z-Finder Jr. does not have a diopter instead it uses Z-Finder Extender Frames to adjust the focal point. The Z-Finder Jr's focal point is -2.75 and up (unlimited with extender frames).
The Z-Finder Extender Frames attach to the skirt of the Z-Finder Jr. and allow you to semi-permanently stack the frames until the LCD screen is in focus for you. The Z-Finder Jr. uses a mounting bracket that must be sandwiched in between a tripod plate and the camera. The bracket mounts to the 1/4 20" screw on your tripod plate and the actual Jr. is held in place with pressure from the fork of the bracket it sits in. A lanyard hook is added outside of the Z-Finder Jr. so you can attach a Zacuto lanyard to it. This allows for the user to quickly take the Z-finder Jr. off and on when needed.
|Optical Lens diameter||40mm|
