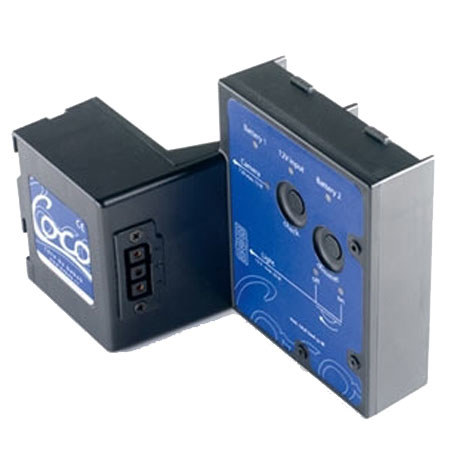

Bebob Engineering Coco II-DVL 12V Power Converter for Sony HDV Camera NPF Series Batteries

SKU: ZOBECOCO2DVL MFR: BE-COCO-II-DVL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrivalat Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$580.00 List Price

Our Price

$469.95
Free Shipping
Qty:

Add to Wishlist

About this item

The Bebob Engineering Coco II-DVL is an updated version of the Coco DVL power converter. A compact & cost-effective method of drawing voltage from Sony NPF970 series batteries to simultaneously operate the camera and profes- sional 12V accessories, Coco II-DVL can be used with popular Sony HDV and Mini DV camcorders including the HVR-Z1U/V1U, HDR-FX1/FX7, VX-2000 series and DSR PD150/170.

The converter simply snaps onto the back of the camera in place of the existing 8.4V NPF battery. Batteries are then attached to the unit's convenient docking plate. While the original Coco-DVL powered both camera and accessories from a single NPF battery, the Coco II plate has connectors for mounting 2 batteries. Coco II transfers 8.4V of power and Info- Lithium data directly to the camera. In addition, it converts 8.4V to 12V from the batteries to run accessories such as a light, on-board LCD monitor, or audio receiver. This arrangement results in both greater power output and a longer running time for on-board equipment.

Coco II's ingenious design orients the batteries at a 90-degree angle. This provides ample space opposite the plate for Coco II's auxiliary connectors and access to the camera's viewfinder with minimal interference. Accessories draw 12V from a dimmable twist D-Tap connector, which allows cables to plug in from either an upward or downward position, while maintaining equal polarity. Two Hirose 4-pin connectors deliver 8.4V/12V for the camera's power supply and to operate wireless audio accessories. (An optional wireless receiver mounting plate is included). Additionally, the Coco II-DVL comes equipped with a DC 12V "Power In" connector for running the camera and accessories off of an external power supply.

What's Included With This Item

  • Bebob Engineering Wireless Receiver Mounting Plate
  • Bebob Engineering 5 Year Warranty

Key Features

  • Converts 8.4V power to 12V for on-board accessories
  • Delivers 8.4V of power directly to camera
  • Accepts (2) 8.4V NPF Batteries
  • Powers on-board monitors
  • Powers on-board transmitters
  • Powers on-board light
  • Twist D-tap 12V output with switchable dimmer
  • 2 Hirose 4-pin 8.4V/12V connector
  • DC 12V Hirose 4-pin "Power In" connector
  • Compact & lightweight
  • Wireless receiver mounting plate

Technical Specs

Input 7.2 VDC from two NPF series battery
Output 12 VDC to Power Tap
7.2 VDC 4pin Hirose connector
Conversion 7.2 VDC to 12 VDC
Compatible with Sony HVR-V1U/FX7
Sony HVR-Z1U/FX1
Sony DSR-PD170/PD150
Sony VX-2000/VX2100
Weight 8oz (227 g)
Warranty Bebob Engineering 5 year warranty
