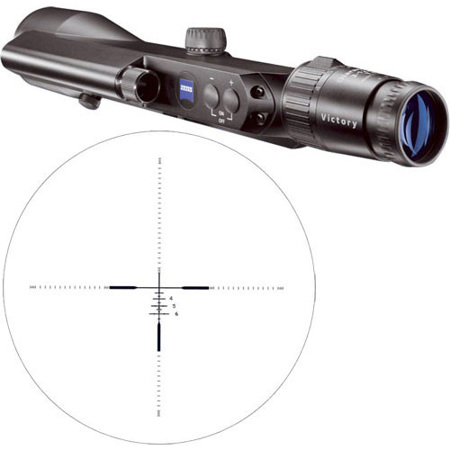

Zeiss 3 - 12x56 T* Victory Diarange M Rangefinding Riflescope, with Rapid-Z 600 Reticle, Hunting Turrets & Railmount.

SKU: ZSDM312X56Z6 MFR: 521797-9971
Zeiss : Picture 1 thumbnail Zeiss : Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Zeiss

The Carl Zeiss Victory Diarange 3-12x56 T* Riflescope is a state of the art sighting system for today's hunters and tactical marksmen. The integrated laser rangefinder leaves no doubt about the distance to your target. The laser projects a beam out to your target and when it is reflected back a beam splitter in the scope separates the reflected laser beam and sends it to a receiver diode. Meanwhile, an extremely accurate timer clocks the round trip of the laser beam.

Finally, a microprocessor calculates the distance to your target and displays that information within 0.5 seconds after you activate the rangefinder. Below your sight picture the digital display shows an exact distance to your target, enabling you to calculate bullet drop compensation and take your target. The range finding abilities of this Victory Diarange scope are complimented with legendary Zeiss optics, T* coatings and construction.

This scope offers a 3-12x zoom range that gives you flexibility for long or short range target acquisition. An extremely efficient 56mm objective lens makes sure you're getting all the light you need for a bright, sharp and detailed image. Obviously, this scope is for the initiated and the cognoscente. When you crown your action with the Victory Diarange 3-12x56, the game is yours.

Zeiss Features

  • Zeiss T* Multicoating: Maximum twilight performance with increased light transmission due to ZEISS T* multicoating, particularly in the night-sensitive blue-spectral range.
  • Zeiss Mounting Rail System: The integral Zeiss rail ensures a repeatable mounting solution without mounting rings. When the rail is properly engaged with the appropriate bases, this mounting rail system nearly eliminates the negative effects of recoil upon your sighting system.
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Zeiss Specifications

3.0x - 12.0x
Effective Lens Diameter
44.0-56.0 mm
Exit Pupil Diameter
14.7-4.7 mm
Twilight Factor
Field of View (ft/100 yards)
37.5 - 10.5
Diopter Range
+2/-4 dpt
Eye Relief (in)
Parallax-Free (yds)
Square Adjustment Range (in/100 yds)
Adjustment per Click (in/100 yds)
Center Tube Diameter
62.5 mm
Eye Piece Tube Diameter
45 mm
Objective Tube Diameter
62.5 mm
Nitrogen Filled
400 mbar
Functional Temperature Range
-13/+122 °F
Measuring Range (yards)
10 - max. 999
Measuring Accuracy
+/- 1 yd @ <650 yds
+/- 0.5% @ >650 yds
Measuring Duration
max. 0.5 sec
14.17 in
Weight (with rail - Illuminated)
34.39 oz
