Zeiss

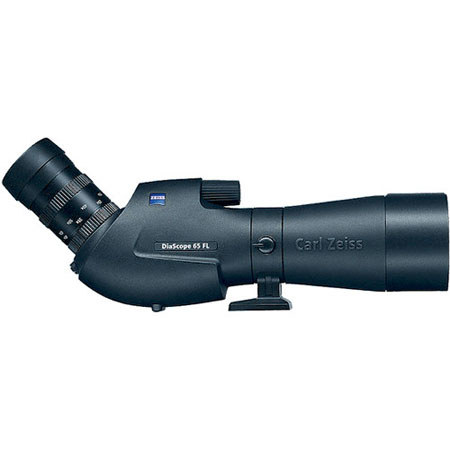

Zeiss Victory DiaScope 15-56x 65T FL Spotting Scope with Tripod, 15-56x Eyepiece, Angled Viewing, Dual Speed Focus System

SKU: ZSDS65AV1575 MFR: 19 00 708
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,387.77 List Price

Our Price

$3,048.99
Free Shipping
Qty:
Add to Wishlist

About the Zeiss 15-56x Spotting Scope

The Zeiss Victory DiaScope 15-56x 65T FL Spotting Scope with Tripod is bundled with the Zeiss light-weight Carbon Fiber Tripod. The Victory DiaScope offers crystal-clear high-powered viewing that reveals the subtle visual nuances of each subject. Vivid and accurate color rendition combined with maximum clarity and detail - even at twilight - becomes a tangible experience. The Zeiss 3-Section Carbon Fiber Tripod with Fluid head is an ideal lightweight support solution for long-distance spotting optics.

Employing an advanced optical path that delivers maximum contrast and superior color fidelity, the DiaScope spotter provides high-resolution viewing and excellent twilight performance. Featuring T multicoated fluoride glass lenses, the DiaScope's field of view offers crisp edge-to-edge clarity with crystal-sharp pin-point details. To ensure optimum viewing regardless of the climate - the rugged ergonomic housing is nitrogen filled, waterproof and fogproof. A significant increase in the DiaScope's all-weather performance has been achieved by treating the exterior lens surfaces with Zeiss' LotuTec water-repellent protective coating to ensure the clearest views possible in any weather conditions.

This particular DiaScope provides angled viewing and it's configured with a 65 mm objective lens. Without its eyepiece, it measures 11.1"/28.2 cm in length and it weighs in at 39 oz/1.1 kg. The mounting foot is threaded to accept either 1/4"-20 or 3/8"-16 studs and its rotating collar can be adjusted to provide a comfortable viewing position in nearly every situation.

The DiaScope's Dual Speed Focus (DSF) system is easy and intuitive to operate. The DSF's centered focus knob is geared for fine focusing within a 270deg. radius of an established focus - outside of that zone the focusing speed increases rapidly. When the observer finds a new focus, the DSF automatically resets to precision mode for fine-tuning the view.

This spotting scope package includes the Vario 15-56x/20-75x eyepiece. Its variable magnification capability adds versatility and flexibility that accommodates a variety of viewing situations. When used with the 65 mm DiaScope, this eyepiece provides 15-56x magnification.

Optically, the Vario DiaScope eyepiece has been engineered to match the performance of the DiaScope T FL spotters. Achromatic fluoride-glass lenses have been implemented for their exceedingly high level of visual acuity and accurate color rendition. The exterior lens surfaces have been graced with a protective LotuTec coating that sheds water, mist, fog and oils. By minimizing the presence of these image-dispersing contaminants, the LotuTec coating maximizes the lens' optical qualities. Every air-to-glass surface of each lens has been fully multicoated with Zeiss' proprietary T coating to ensure optimum light transmission, contrast and color fidelity.

A simple yet robust bayonet mount with a locking button ensures that the eyepiece fits securely to the DiaScope's housing - a simple twist-to-attach operation puts the ocular into its working position. A security lock button has to be held down to disengage the eyepiece. Eye/sunglass wearers will greatly appreciate the eyepiece's generous 16 mm of eye relief along with the adjustable twist-up rubber eyecup.

Zeiss 15-56x Spotting Scope Includes

  • Zeiss Victory DiaScope 15-56x 65T FL Spotting Scope
  • DiaScope Vario 15-56x/20-75x Eyepiece
  • 3-Section Carbon Fiber Tripod with Fluid Head
  • Objective Cap
  • Eyepiece Mount Cover
  • Ocular Lens Cap
  • Eyepiece Bayonet Cap
  • Zeiss Warranty

Zeiss 15-56x Spotting Scope Features

  • Optical Performance: 65 mm Objective
  • Optical Performance: Focal length of 384 mm
  • Optical Performance: AAOV with 15-56x 41.1-60.0deg
  • Optical Performance: LotuTec coating: Sheds water, dirt, grease, grime. Lenses can be wiped clean without smearing
  • Optical Performance: T multicoating: lenses are fully multicoated with T coatings to reduce flare, improve contrast, enhance light transmission
  • Optical Performance: FL Concept: fluoride glass lens elements deliver brighter and sharper images with accurate color and higher levels of contrast. They minimize chromatic aberrations while virtually eliminating stray light interference, image fuzziness, low contrast
  • Design and Construction: Front filter thread: M 67 x 0.75
  • Design and Construction: Thread for adapting photo/astro adapter: M 45 x 0.5
  • Design and Construction: Integral retractable sun shade shades and protects objective
  • Design and Construction: Lightweight nitrogen filled housing is waterproof and fogproof
  • Design and Construction: Dual speed focus knob is ergonomically positioned for intuitive operation
  • Design and Construction: Angled body design allows greater comfort when glassing for extended periods
  • Use and Handling: Rotating tripod collar with 1/4"-20 and 3/8"-16 mounting threads
  • Use and Handling: DSF - dual-speed focusing: when a subject is in clear focus, the system sets itself into Precision Mode where a 270deg. rotation on either side of current focus is slow and precise
  • Outside of that zone the focusing speed increases 5x. Once a new focus is established, the system automatically drops back to Precision Mode
  • DiaScope Vario 15-56x/20-75x Eyepiece: Eye relief: 16 mm / 0.63"
  • DiaScope Vario 15-56x/20-75x Eyepiece: Secure easy-to-use bayonet mount
  • DiaScope Vario 15-56x/20-75x Eyepiece: Magnification on 65 mm DiaScope: 15-56x
  • DiaScope Vario 15-56x/20-75x Eyepiece: Twist-up rubber eyecup for a customized view with/without eye/sunglasses
  • DiaScope Vario 15-56x/20-75x Eyepiece: Sealed barrel is purged with dry nitrogen for reliable waterproof/fogproof operation in any climate
  • DiaScope Vario 15-56x/20-75x Eyepiece: LotuTec coating: Sheds water, dirt, grease, grime. Lenses can be wiped clean without smearing
  • DiaScope Vario 15-56x/20-75x Eyepiece: T multicoating: lenses are fully multicoated with T coatings to reduce flare, improve contrast, enhance light transmission
  • DiaScope Vario 15-56x/20-75x Eyepiece: FL Concept: fluoride glass lens elements deliver brighter and sharper images with accurate color and higher levels of contrast. They minimize chromatic aberrations while virtually eliminating stray light interference, image fuzziness, low contrast
  • 3-Section Carbon Fiber Tripod with Fluid Head: Balance plate, +90 to -65deg. tilt, 75" maximum height, Supports loads up to 8.8 lb
  • 3-Section Carbon Fiber Tripod with Fluid Head: Lightweight at only 5.7 lb total, Precise fluid pan / tilt head with pan bar

Zeiss 15-56x Spotting Scope Specifications

Magnification 15-56x
Mounting Thread 1/4"-20, 3/8"-16
Filter Thread M 67 x 0.75
Field of View 15x: 3deg. - 156' at 1000 yd / 51.8 m at 1000 m
56x: 1.2deg. - 63 ' at 1000 yd / 21.0 m at 1000 m
Minimum Focus Distance 13.1' / 4.0 m
Exit Pupil Diameter 15x: 4.3 mm
56x: 1.2 mm
Weatherproofing Waterproof, fogproof
Material Lens: Glass
Eye Relief 16mm / 0.62"
Focal Length 384mm / 15"
Objective Lens Diameter 65mm / 2.55"
Dimensions 11.1x4.1x3.1" / 28.1x10.4x7.8cm
Weight 39oz / 1105g
