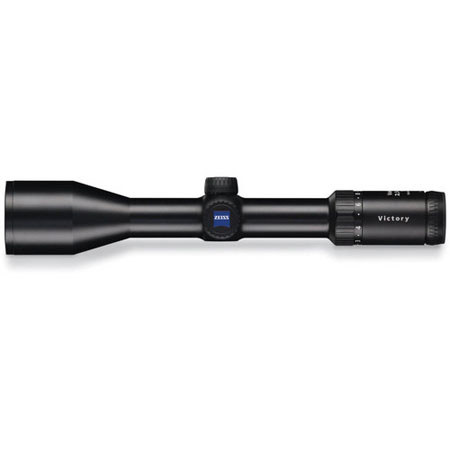

The Zeiss 522421-9906-010 Victory HT 2.5-10x50 Riflescope (ASV Elevation) is equipped with the bullet drop compensation ASV, elevation and a #6 non-illuminated reticle. It is a low-profile, all-purpose scope that squeezes most light out of its 50mm objective from dawn until dusk. Reticle #6 provides a secure basis for successful aiming and shooting. It offers double the space between the posts and therefore less target coverage. The reticle is only in the 2nd image plane and is suitable for very precise aiming over long distances due to the fact that its size remains constant. This riflescope achieves up to 95% light transmission or more and the optical concept of this riflescope offers low light performance. With the SCHOTT HT high-transmission lens, this riflescope allows you to hunt for a longer day with success afield.
This Victory HT Riflescope's compact construction with eyepiece enables the scope to be mounted low on the rifle, merging the 2 into a low-profile, high-performing shooting unit. The lightweight, matte black, aircraft-grade aluminum housing is both elegant and rugged. It offers huge advancements in ergonomics.
|Magnification||2.5x & 10.0x|
|Lens Diameter||Effective: For 2.5x: 1.48" (37.70 mm)
For 10.0x: 1.97" (50.00 mm)
|Exit Pupil Diameter||For 2.5x: 0.59" (15.00 mm)
For 10.0x: 0.20" (5.00 mm)
|Twilight Factor||For 2.5x: 7.1
For 10.0x: 22.4
|Field of View||For 2.5x: 48.56' (14.80 m) at 328.08' (100.00 m)
For 10.0x: 13.45' (4.10 m) at 328.08' (100.00 m)
For 2.5x: 8.5deg.
For 10.0x: 2.3deg.
|Diopter Adjustment||+2/-4 dpt|
|Eye Relief||3.54" (89.92 mm)|
|Parallax-Free||109.0 yards (0.1 km)|
|Adjustment Range||50.4" (1280.16mm) at 100 yards (0.09 km)|
|Adjustments||0.34 MoA per Click|
|Diameter||Center Tube: 1.18" (30.00 mm)
Eyepiece: 1.65" (42.00 mm)
Objective: 2.20" (56.00 mm)
|Waterproof||13.10' (3.00 m)|
|Operating Temperature||-13 to 122deg.F (-25 to 50deg.C)|
|Length||12.64" / 32.10 cm|
|Weight||Without Rail Mount: 18.20 oz / 515.96 g|
