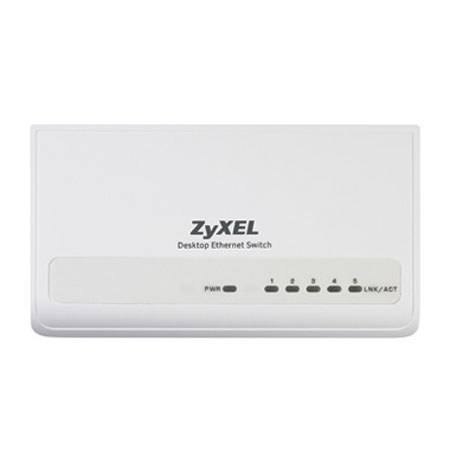

ZyXEL ES105S Desktop 5 Port Plug-and-Play Desktop Fast Ethernet Switch with Plastic Housing

ZyXEL
SKU: ZYES105S MFR: ES105S
ZyXEL ES105S: Picture 1 thumbnail ZyXEL ES105S: Picture 2 thumbnail ZyXEL ES105S: Picture 3 thumbnail

Our Price

$19.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • 10/100 Transfer Rate
  • Ethernet Switch
  • Single-band
  • 100 Mbps
  • 5 Ports
  • Wired

About ZyXEL ES105S

The ZyXEL ES-105S comes with 5 Fast Ethernet ports designed for easy home network extension, while the compact, elegant design and silent operation also fit any home environment easily. The optional wall-mount installation also allows users to free up the room space.

ZyXEL ES105S Features

  • The ES-105S with plastic housing offers a Fast Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs
  • The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved
  • With the N-way auto-negotiation function, the ES-105S connects to network counterparts with highest possible network speed and activates full-duplex mode automatically, while the store-and-forward service brings low latency and error-free packet delivery
  • The ES-105S features Green solutions that provide power-saving benefits without compromising performance. The ES-105S automatically reduces power usage by detecting any shutdown network device or inactive link
  • Compact and Elegant Design
  • Plug-and-Play Design for Easy Connection to up to 5 Networking Devices
  • Automatically Adjust Power Consumption by Detecting Link Status and Cable Length

ZyXEL ES105S Specifications

Interface
5 x 10/100 Mbps Ethernet Ports
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3 N-way Auto-negotiation
IEEE 802.3x Full Duplex Operation and Flow Control
Performance
Auto-MDI/MDIX on all ports
Transmission Method: Store-and-forward architecture
Data Transfer Rate (Half Duplex/Full Duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
MAC Address Table: 2K
Memory Buffer: 48KB
Switching Fabric (Non-blocking): 1.0 Gbps
LED Indicator PWR
Power
LED Indicator Per Port
Link/ Activity
Power Supply
External switching power adapter
Input: 100-240V AC
Output: 5V DC, 0.6A
Power Consumption
2.25 Watt max
Operating Environment
Temperature: 0deg. C - 50deg. C(32deg. F - 122deg. F)
Humidity: 10% - 95% (Non-condensing)
Storage Environment
Temperature: -40deg. C - 70deg. C(-40deg. F - 158deg. F)
Humidity: 10% - 95% (Non-condensing)
Dimensions (W x D x H)
150 x 81.2 x 32.2 mm / 5.9" x 3.2" x 1.3"
Weight
160 g ( 0.35 lb)
Mfr #
ES105S
SKU
ZYES105S
