ZyXEL

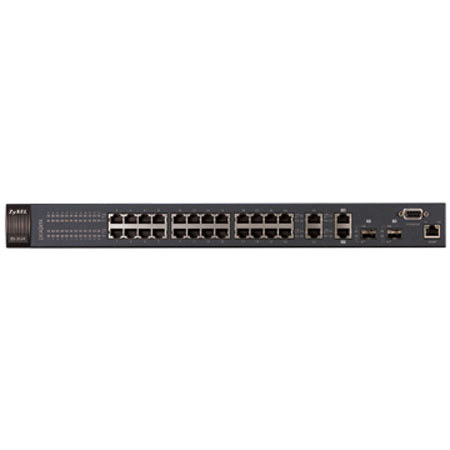

ZyXEL ES3124 24 Port Managed Layer 2+ Fast Ethernet Switch with Two GbE Ports and Two Shared GbE/SFP Ports

SKU: ZYES3124 MFR: ES3124
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$599.99
Free Shipping
Qty:

Add to Wishlist

About the ZyXEL ES3124

With twenty-four 10/100Mbps RJ-45 ports, two GbE copper ports and two shared SFP / copper GbE interface, ZyXEL ES-3124 boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 12.8Gbps. Its four built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.

Featuring "Backup Power System Support" design for even higher availability, ZyXEL ES-3124 adds a built-in DC power receptacle on its rear panel for external Backup Power System connection; and the system can switch to the alternative power source automatically in response to different situations.

ZyXEL ES3124 Features

  • L2+ (L2-L4) Access Control List (ACL) allows for better QoS and multimedia
  • ZyXEL iStacking Technology allows you to managed multiple switches from one IP
  • SSH v1/v2, SSL/TLS for secure management
  • The ES-3124 prioritizes applications with WFQ (Weighted Fair Queuing) scheduling algorithm to allocate more bandwidth to key traffics such as voice transmission, empowering the Enterprise to take full advantages of the limited network resources and guarantee the best performance
  • The ES-3124 also supports a variety of ways to categorize and prioritize network packets; multilayer information from L2 to L4 can be used to classify packet priorities for alignment with ACL features to construct a platform for Multi-Service Networks
  • ZyXEL ES-3124 offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms comprised of per-port MAC filtering, limited per-port MAC number, port-based 802.1x user and device authentication
  • With support of advanced features including iStacking SNMP, Web, telnet, RS-232 and RJ-45 MGMT ports, the ES-3124 is very easy to deploy and manage. Better yet, its underlying ZyXEL iStacking technology allows up to 24 clustered switches to be managed by just one IP management
  • The ES-3124 prioritizes applications with WFQ (Weighted Fair Queuing) scheduling algorithm to allocate more bandwidth to key traffics such as voice transmission, empowering the Enterprise to take full advantages of the limited network resources and guarantee the best performance
  • The ES-3124 also supports a variety of ways to categorize and prioritize network packets; multilayer information from L2 to L4 can be used to classify packet priorities for alignment with ACL features to construct a platform for Multi-Service Networks
  • With support of advanced features including iStacking SNMP, Web, telnet, RS-232 and RJ-45 MGMT ports, the ES-3124 is very easy to deploy and manage. Better yet, its underlying ZyXEL iStacking technology allows up to 24 clustered switches to be managed by just one IP management

ZyXEL ES3124 Specifications

Standard Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.3ad LACP aggregation
IEEE 802.1ad VLAN Stacking
Non-blocking switching fabric 12.8Gbps
Switching Forwarding Rate 1488000pps forwarding rate for 1000Base-T/1000Base-X connectivity, 148800pps forwarding rate for 100Base-TX connectivity
MAC and Packet Buffer 16K MAC entries
32B packet buffer
Traffic Management and QoS IEEE 802.1p with 8 priority queues per port for different types of traffic
WFQ (Weighted Fair Queuing) scheduling for different prioritization of packets
SPQ for highest priority packets to get best service
IEEE 802.1Q tag-based and port-based VLAN
Supports GVRP, automatic VLAN member registration
Supports IGMP snooping
Congestion control on all ports
Rate Limiting: Rule-based bandwidth control
Port-based egress traffic shaping
Rule-based traffic mirroring
Link Aggregation IEEE 802.3ad compliant
Support LACP, static and dynamic link aggregation
Up to 6 aggregation groups, per group support up to 8 ports
8 ports per group randomly selected
Redundancy for Fault Backup IEEE802.1w Rapid Spanning Tree Protocol(RSTP) provides rapid convergence of spanning tree independent of spanning-tree timer
User Security and Authentication MAC filtering per port secures access to each port
Specific MAC forwarding per port: only specified MAC addresses can access the network (port lock)
Limited MAC number per port
IP Filtering
TCP/UDP Socket Filtering
802.1x port-based security, prevent unauthorized client access to the network
256 static VLAN, up to 4K dynamic VLAN
Private VLAN provides security and isolation between ports on a switch, ensures that users can not snoop on each other traffic
Network Administration Security User name/password required for web/telnet/local console administrators
Two level security by specific SNMP read/write community
SSHv1/v2
SSL/TLS
Network Management Supports ZyXEL iStacking up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI
SNMP v2c
RS-232c Local console
IP management: static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Port mirroring: supports Source/Destination/Both port mirroring
Intelligent ACL Based on MAC address
Based on VLAN
Based on IP address
Based on Protocol type
Based on DSCP
Console port 1 console port, D-Sub 9 pin Female (DCE)
Input voltage of AC 100-240VAC, 50/60Hz
Max power rating of AC 50 Watt
Backup power supply 12V DC
Operating temperature 32deg. F - 113deg. F / 0deg. C - 45deg. C
Storage temperature -13deg. F - 158deg. F / - 25deg. C - 70deg. C
Operating humidity 10% - 90%, non-condensing
Dimensions (W x D x H) 17.3" x 11.8" x 1.75" / 440 x 300 x 44.5 mm
Weight 8.8 lbs /4.0 Kg
