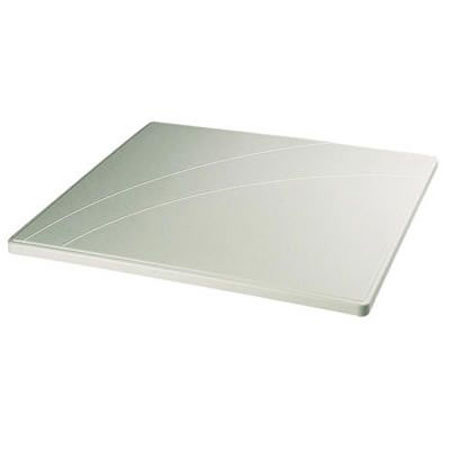

The ZyXEL 18 dBi Outdoor Panel Antenna performs best in open environments with the least amount of obstructions possible. Performance may be significantly impaired if antennas are mounted near metal surfaces, concrete walls, or other high-density materials. To meet the challenge of these and other severe environments, ZyXEL offers performance-enhancing antennas for its ZyXEL family of wireless modems.
ZyXEL's extended reach antennas allow users to get the best wireless performance out of the most difficult environments. With ZyXEL antennas, customers will enjoy greater reach and better transmission quality for their wireless networks.
|Frequency range||2400 MHz - 2500 MHz|
|VSWR||1.5: 1 Max.|
|HPBW / horizontal||15deg.|
|HPBW / vertical||1deg.|
|Survival wind speed||180km/hr|
|Temperature||- 40deg.C to 80deg.C|
|Humidity||95% at 55deg.C|
|Lightning protection||DC ground|
|Housing material||ABS, UV resistant|
|Dimensions (W x H x D)||14.17 x 14.17 x 063 in / 360mm x 360mm x 16mm|
|Weight||3.53 lbs / 1.6kg|
