ZyXEL IES-1000M 1U IP Digital Subscriber Line Access Multiplexer, DSLAM, with AC Power

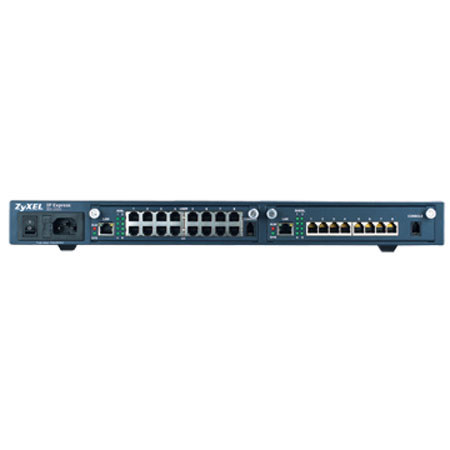

ZyXEL IES-1000M: Picture 1 thumbnail ZyXEL IES-1000M: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • 10/100 Transfer Rate
  • Single-band
  • 100 Mbps
  • 24 Ports
  • Wired

About ZyXEL IES-1000M

ZyXEL IES-1000 is a pizza box IP-based multi-service access node (MSAN). It has two slots for various combinations of DSL and VoIP line modules to provide ADSL2+, G.SHDSL and VoIP services to residential and business customers. It terminates the ATM traffic of DSL connections and POTS voice signals to make them IP packets and route them through IP networks. With the highly compact design (1U height), AC power input as well as simple installation, IES-1000 can be deployed at Telco and SMB environment to meet all kinds of market demands.

With G.SHDSL technology, the IES-1000 is applicable for lease line replacement. Using the TC-PAM modulation technique, IES-1000 is compatible with other existing transmission technologies, allowing service providers to deploy at locations where broadband services already exist.

IES-1000 supports the new-generation G.SHDSL.bis line module to provide transmission rate up to 4096kbps symmetrically in a single pair. It also comes with two 100Mbps Ethernet interfaces toward Ethernet aggregation network. One IES-1000 can accommodate two SAM1216-22 modules to support 32 SHDSL connections. In addition, the SAM1216-22 supports ITU G.991.2 m-pair bonding in a physical layer manner. The m-pair bonding can be 2 or 4 pairs and the aggregated payload rate is around 16Mbps.

ZyXEL IES-1000M Features

  • Multi-service Access Node, AC power input with two slide-in slots for various DSL and VoIP line modules
  • 12-port ADSL/ADSL2/ADSL2+ line module with a splitter built-in for MTU application
  • 8-port G.SHDSL or 16-port G.SHDSL.bis line modules with M-pair bonding feature for business applications
  • 24-port VoIP line module with SIP signaling protocol and MLT function support
  • Line module cascading with fast ethernet uplinks
  • 802.1p QoS, priority queuing, 802.1q VLAN tagging and multicasting support
  • 802.1x authentication, MAC/Packet filtering and ACL filtering support
  • Manageable with the Windows-based Element Management System (EMS)

ZyXEL IES-1000M Specifications

802.1Q VLAN aware bridging
IGMP snooping supports multicast traffic
QoS support with 802.1p
DHCP relay agent option 82 per VLAN
Port isolation/per VLAN isolution
256 static VLAN entries (full-range VLAN ID 1-4094)
4 K MAC address entries
Packet prioritizing per 802.1p (QoS)
Static configuration - default priority setting
4 priority queues per PVC (up to 4 PVCs)
IPv4 multicast forwarding (through L2 MAC)
Static multicast membership configuration
IGMP v1, v2 snooping & IGMP proxy mode support
Shared VLAN multicast
256 multicast groups and each group can contain 18 members
IGMP filtering profile
IGMP count limiting
DSL port multicast bandwidth control
Management support
CLI-based management from console/Ethernet port
SNMPV1,v2 and telnet through Inband Ethernet interface and NetAtlas Access, PC-based EMS management support
Web-based management through Inband Ethernet interface
Secured Host: configure remote host IP addresses for management
UNIX syslog
F/W upgrade, configuration backup & restore via FTP and Web
Text-based configuration file support
Power supply (AC/DC)
AC Power: 100-240V AC, 50 - 60Hz
Operating Temperature
0deg. C- 50deg. C
Storage temperature
-40deg. C- 70deg. C
Operating Humidity
10% - 90% (non-condensing)
Storage Humidity
10% - 95% (non-condensing)
440 x 320 x 46 mm / 17.32 x 12.59 x 1.81"
3.7 Kg / 8.15 lbs
