ZyXEL IES5000M Main Chassis for IES5000


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About ZyXEL IES5000M

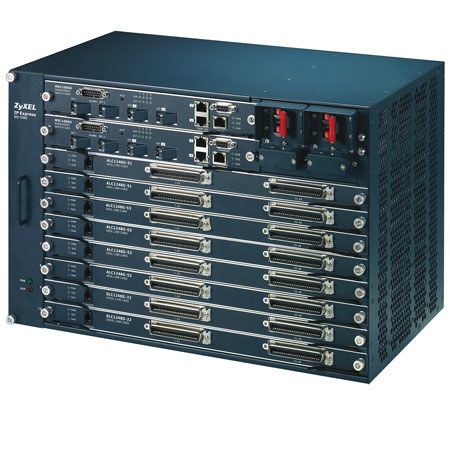

The ZyXEL IES-5000M is equipped with non-blocking gigabit backplane, failover-enabled Management Switch Cards (MSC), dual power modules, high-port density DSL line cards and VoIP line cards. With embedded IP-centric QoS, security and multi-casting firmware features, the IES-5000M is a chassis-based system that facilitates Telco/ISP delivering high degree of quality of experience to today's demanding residential and business customers and achieving its infrastructure provisioning criteria of reliability, flexibility and scalability at competitive CAPEX/OPEX.

ZyXEL IES5000M Specifications

Expansion Slots
(10 Total) Expansion Slot
Form Factor
6.5U 19"/23" Rack-mountable
IEEE 802.1p CoS with priority queuing
Eight queues with packet priority scheduling (SPQ, WFQ, WRR)
Support 256 multicast groups
Support 384 copies for each multicast group
IEEE 802.1x (Authentication)
ARP broadcast filtering
DHCP broadcast filtering
IGMP filtering
Traffic Management
Tunneling: PPPoE, MP encap. over ATM
STP: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s
Network Management
Local management through a craft terminal
Web-based Management Interface
In-band and out-of-band IP interface for management (SSH, SFTP)
SNMP Management (through ZyXEL NetAtlas Access EMS)
Dimensions (H x W x D)
9.80" x 17.32" x 11.37" / 24.89 x 43.99 x 28.87 cm
