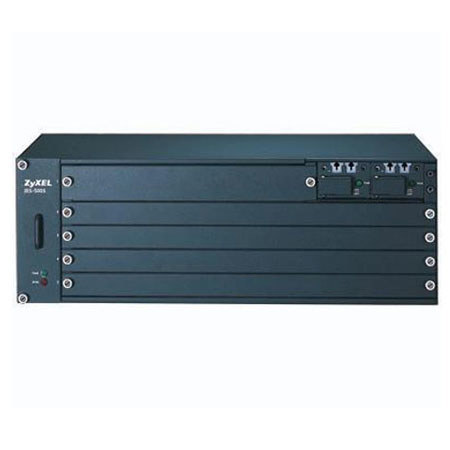

ZyXEL IES5005M Main Chassis for IES-5005

SKU: ZYIES5005M MFR: IES5005M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$999.99 $40 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the ZyXEL IES5005M

The ZyXEL IES-5005M is equipped with non-blocking Gigabit backplane, failover-enabled Management Switch Cards (MSC), dual power modules and high-port density DSL line cards. With embedded IP-centric QoS, security and multicasting firmware features, the IES-5005M is a chassis-based system that facilitates Telco/ISP delivering quality experience to today's demanding residential and business customers. Such features enable it to achieve its infrastructure provisioning criteria of reliability, flexibility and scalability at competitive CAPEX/OPEX.

The compact design of IES-5005M offers a 4RU-height and five-slot chassis-based system with a separated 3RU splitter frame. One slot is reserved for an MSC card and the remaining four slots are for DSL line termination cards. The ADSL2/ADSL2+/G.SHDSL.bis line cards have 48 ports while the VDSL2 line card comes with 24 ports. In a standard rack, you can install up to ten units without a splitter chassis or up to six units with a splitter chassis.

Four hot swappable DSL line cards (ADSL2+ over POTS, ADSL2+ over ISDN, G.SHDSL and VDSL2) are available. The ADSL2+ over POTS and the ADSL2+ over ISDN give subscribers with asymmetric transmission bandwidth of up to 25 Mbps/1.2 Mbps. The G.SHDSL.bis provides symmetric transmission bandwidth of 4.096 Mbps, 8.192 Mbps or up to 16.384 Mbps (similar to a lease line). The VDSL2 offers up to 65 Mbps/35 Mbps high speed connectivity per port with various loop distances over copper wiring.

ZyXEL IES5005M Features

  • Non-blocking Gigabit Backplane
  • IEEE 802.1p Priority Queuing, Packet Classification and Queue Scheduling (SP, WRR)
  • VLAN Bridging, VLAN Trucking and VLAN Stacking
  • IGMP v1, v2 Snooping and Proxy
  • 256 Multicast Groups
  • Anti IP/MAC Address Spoofing
  • Rule-based Packet Filtering
  • Failover Network Termination
  • Single/Dual End Loop Test
  • ATM Forum TM 4.0

ZyXEL IES5005M Specifications

DSL Compliant 1 ADSL:
G.992.1 Annex A, G.992.3 Annex A, G.992.5 Annex A
G.992.1 Annex B, G.992.3 Annex B, G.992.5 Annex B
Support G.992.3 and G.992.5 Spectral Mask
Support Annex M and Annex L in G.992.3 and G.992.5
Support EOC and Overhead Channel Access
DSL Compliant 2 Support the latency path function
Support loop diagnostic function specified
Support the power management capability
Support the capability of the Seamless Rate
Adaptation (SRA) on-line configuration
Dual end loop test
SHDSL: G.991.2, G.991.2.bis
VDSL2: G.993.2, G.994.1, G.997.1
ATM Traffic Management 8 VPC/VCC per DSL port
Support UBR, CBR, rt-VBR, nrt-VBR QoS Mechanisms
Support ATM Forum TM 4.0 peak cell rate traffic parameter
Support downstream traffic shaping function per ATM PVC
Support ATM F5 OAM cells for End-to-End Loop back test (ITU-T Rec. I.610)
Performance IEEE 802.1p CoS with priority queuing
Eight queues with packet priority scheduling (SPQ, WFQ, WRR)
Support 256 multicast groups
Support 384 copies for each multicast group
The maximum channel zapping processing time is 250 ms
DSCP to 802.1p mapping
Security Port isolation
IEEE 802.1x (Authentication)
Rule-based packet filtering (L2 - L4 ACL)
MAC count limiting
ARP broadcast filterin
DHCP broadcast filtering
DHCP snoopin
NetBiOS filterin
IGMP filtering
Anti IP/MAC address spoofing
VLAN 4096 IEEE 802.1Q compliant VLAN tagging
Port-based VLAN
VLAN stacking
VLAN Bridge Function (multiple PVCs to one VLAN)(N:1)
PVC and VLAN one to one mapping (1:1)
VLAN Trunking (Single PVC join Multiple VLAN)(1:N)
Support GVRP function
Traffic Management Tunneling: PPPoE, MP encap. over ATM (RFC 2684)
STP: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s
IEEE 802.3ad (Link Aggregation Control Protocol)
IP multicast forwarding
IGMP v1, v2 snooping/proxy
IGMP multicasting channel limiting
DHCP Relay Option 82
Multicast bandwidth control
L2 - L4 ACL
IGMP group count/filtering profile
Network Management 1 Local management through a craft terminal
Web-based Management Interface
In-band and out-of-band IP interface for management (SSH, SFTP)
SNMP Management (through ZyXEL NetAtlas Access EMS)
SNMPv1/v2c/v3 agent/traps
Standard MIBs
Network Management 2 RFC 1213 MIB II
ADSL Line MIB (RFC2662)/Extension Line MIB (RFC 3440)
SHDSL Line MIB (RFC 3276)
VDSL line MIB (RF3728)
Bridge MIB/Extension MIB
RMON MIB (RFC 1757)
Vendor specific MIBs, e.g., Chassis Management MIB (Fan Speed, Voltage, Temperature)
Hardware 5-slot rack mountable enclosure, 19" or 23" chassis
4 slots for DSL line termination cards
1 slots for management and switch cards
2 DC power input module and filter
One FAN and dust filter module
Operating temperature 0deg. C - 50deg. C
Storage temperature -40deg. C - 85deg. C
Humidity 5 - 95% (non-condensing)
Power Supply -48 V DC
Power Consumption 350 W
Dimensions 440 x 250 x 151.9 mm / 17.32 x 9.84 x 5.98 inch
Weight 5 Kg / 11.02 lbs
