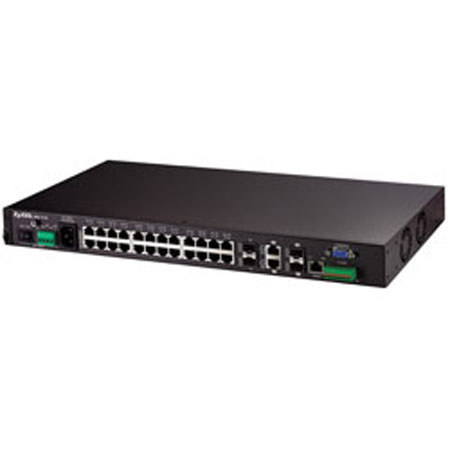

ZyXEL MES3728 24 Port Metro Fast Ethernet Layer 2 Managed Switch with AC/DC Dual-Input Power Source

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$1,279.99 $51 per week
Free Expedited Shipping
Add to Wishlist

About the ZyXEL MES3728

The ZyXEL MES-3728 is a carrier-class Ethernet switch based on a high-performance hardware platform with robust security, Quality of Service (QoS) and management features to deliver intelligent connectivity for differentiated metro Ethernet services. With new features like VLAN Stacking (also known as VLAN Tunneling) and VLAN Translation*, it is capable of isolating individual customer traffics from internal signaling of the core networks.

ZyXEL MES3728 Features

  • 24 Auto MDI/MDI-X 100BASE-TX ports for subscribers
  • 2 1000Mbps ports that are compliant with IEEE802.3x/ab
  • 2 SFP open slot for cascading Ports for Cascading
  • External Alarm Block (4 inputs, 1 output)
  • 16K Layer-2 MAC addresses table
  • Supports 1MB on-chip packet buffer
  • Authentication and accounting by RADIUS / TACACS+
  • IEEE 802.3ah OAM
  • The MES-3728 offers high operating temperature tolerance, flexible AC/DC dual-input power source as well as protection against humidity and dust for service providers to extend their networks

ZyXEL MES3728 Specifications

Standard Compliance 1 IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.ah 1000BASE-BX10-U Ethernet
IEEE 802.ah 1000BASE-BX10-D Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1D Spanning tree protocol
Standard Compliance 2 IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning tree protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.3ad LACP aggregation
IEEE802.1ag CFM
Non-blocking switching fabric 12.8Gbps
Switching Forwarding Rate 1488000pps for 1000Base-T, 64byte packet
148800pps for 100Base-TX, 64byte packet
MAC and Packet Buffer 16K MAC entries
1MB on Chip Packet Buffer
Traffic Management and QoS 802.1p with 8 CoS per port
Port based rate limiting
Policy based rate limiting
Port based traffic shaping
Rule-based bandwidth control
Port-based egress traffic shaping
Rule-based traffic mirroring
IGMP snooping (IGMP v1/v2/v3,)
Link Aggregation IEEE 802.3ad LACP link aggregation compliant
Support static manually port trunking
Up to 6 aggregation groups, 8 ports/per group randomly selected
Resilient Network IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
BPS (Backup Power System)
User Security and Authentication Static MAC Filtering
Limiting MAC number per port
802.1x Authentication
Port based VLAN
802.1Q VLAN
Wire speed filtering per MAC/IP/TCP/UDP
Wire speed rate limiting per MAC/IP/TCP/UDP
Wire speed mirroring per MAC/IP/TCP/UDP
Management iStacking: Embedded web-based interface
Cisco like Command Line Interface via telnet or local console
Text-based configuration profile for massive deployment
Support standard Web-based browser
SNMP v2c,v3 manageable
RMON for system and performance monitoring
Out-of -band MGMT Port
F/w upgrade, configuration backup/restore via ftp
Alarm led indicator for early warning of hardware troubles
Send system trap to trap server
Intelligent ACL Based on Port
Based on MAC+VLAN ID
Based on IP Address (Source/Destination)
Based on L3 Protocol category
Based on TCP/UDP port number
Auto-negotiation Yes
Auto-MDIX Yes
Connector RJ-45/Gbe SFP
Operating temperature 0deg. C - 65deg. C
Storage temperature 10 deg. C - 70deg. C
Humidity 10% - 99%(non-condensing)
Dimensions (W x D x H) 438 x 215 x 44.45 mm / 17.24" x 8.46" x 1.75"
Weight 3.4 Kg / 7.49 lbs
