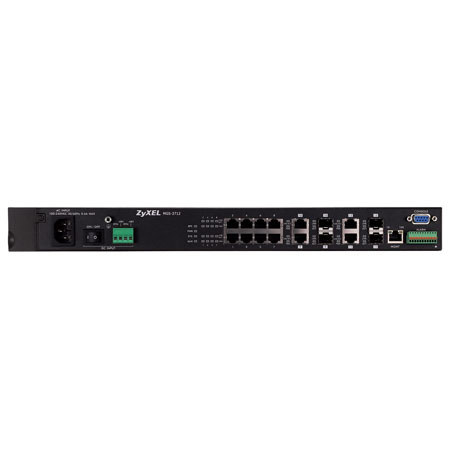

ZyXEL MGS3712 12 Port Metro Layer 2 Gigabit Managed Ethernet Switch with 4 Port Dual Personality GbE (GbE SFP + 1000Base-T)

ZyXEL MGS3712: Picture 1 thumbnail ZyXEL MGS3712: Picture 2 thumbnail ZyXEL MGS3712: Picture 3 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • Gigabit Transfer Rate
  • Ethernet Switch
  • 1000 Mbps
  • Dual-band
  • 12 Ports
  • Wired
ZyXEL MGS3712: Picture 1 regular $1,499.99

About ZyXEL MGS3712

The ZyXEL MGS-3712 Gigabit Ethernet switches offer Layer 2 switching capability in a smart enclosure. With non-blocking 24 Gbps switching fabric, the MGS-3712 feature 8 GbE copper ports and 4 dual-personality GbE (GbE SFP + 1000Base-T) ports.

The MGS-3712 also come with advanced L2/L3/L4 features, high-performance hardware platform, robust security, Quality of Service (QoS) and management features to deliver intelligent connectivity to essential business applications. Incorporating new features such as VLAN Stacking (also known as VLAN Tunneling) and VLAN Translation, it is possible to isolate the customer traffics from each other or the internal core network signaling traffic.

On MGS-3712, the "Front Access" outdoor cabinet design for easy wiring and maintenance has been added to meet Metro Ethernet demands; and flexible power source choices like AC/DC dual-input also relieves customer of outlet constraints. In addition, the PWM control fan module not only reduces the noise, but also extends MTBF and improves reliability. External alarm input/output block connects mechanical cabinet parts to the management network, while the operation temperature and high humidity protection allows the network to spread more extensively.

ZyXEL MGS3712 Features

  • 12/4 Auto MDI/MDI-X 100/1000Mbps ports compliant with IEEE802.3u/x/ad on MGS-3712
  • 16K Layer 2 MAC address table
  • Supports 1MB on-chip packet buffer
  • Authentication and accounting by RADIUS / TACACS+
  • Overheat detection
  • IEEE 802.3ah OAM

ZyXEL MGS3712 Specifications

Standard Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.ah 1000BASE-BX10-U Ethernet
IEEE 802.ah 1000BASE-BX10-D Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning tree protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.3ad LACP aggregation
Non-blocking switching fabric
Switching Forwarding Rate
1488000pps for 1000Base-T, 64byte packet
MAC and Packet Buffer
16K MAC entries
1MB on Chip Packet Buffer
Traffic Management and QoS
802.1p with 8 CoS per port
Port based rate limiting
Policy based rate limiting
Port based traffic shaping
Rule-based bandwidth control
Port-based egress traffic shaping
Rule-based traffic mirroring
IGMP snooping (IGMP v1/v2/v3)
Link Aggregation
IEEE 802.3ad LACP link aggregation compliant
Support static manually port trunking
Up to 6 aggregation groups, 8 ports/per group randomly selected
Resilient Network
IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
BPS (Backup Power System)
User Security and Authentication
Static MAC Filtering
Limiting MAC number per port
802.1x Authentication
Port based VLAN
802.1Q VLAN
Wire speed filtering per MAC/IP/TCP/UDP
Wire speed rate limiting per MAC/IP/TCP/UDP
Wire speed mirroring per MAC/IP/TCP/UDP
iStacking: Embedded web-based interface.
Cisco like Command Line Interface via telnet or local console
Text-based configuration profile for massive deployment
Support standard Web-based browser
SNMP v2c,v3 manageable
RMON for system and performance monitoring
Out-of -band MGMT Port
F/w upgrade, configuration backup/restore via ftp
Alarm led indicator for early warning of hardware troubles
Send system trap to trap server
IEEE802.1ag CFM
Selective QinQ
Intelligent ACL
Based on Port
Based on MAC+VLAN ID
Based on IP Address (Source/Destination)
Based on L3 Protocol category
Based on TCP/UDP port number
8 1000- Base-T / 8 GbE SFP
4-port dual personality GbE (GbE SFP + 1000Base-T)
RJ-45 / GbE SFP
Operating temperature
0deg. C - 65deg. C
Storage temperature
10deg. C - 70deg. C
10 - 99% (non-condensing)
Dimensions (W x D x H)
438 x 215 x 44.45 mm / 17.24" x 8.46" x 1.75"
3.4 Kg / 7.49 lbs
Mfr #
